Finned Tube Fin Welding Metallographic Preparation

Ever wondered what makes heat transfer efficient in boilers, heat exchangers, petrochemical & HVAC systems? It’s finned tubes!

As high-performance heat transfer components, finned tubes boost heat exchange area dramatically by adding fins to the base tube surface. This enables more compact, efficient heat transfer—making them indispensable across key industrial sectors.

The welding quality between fins and base tube is non-negotiable for equipment safety & lifespan. Secure metallurgical bonding is a must to avoid defects like cold welding or cracks, which could lead to fin detachment or leakage during operation.

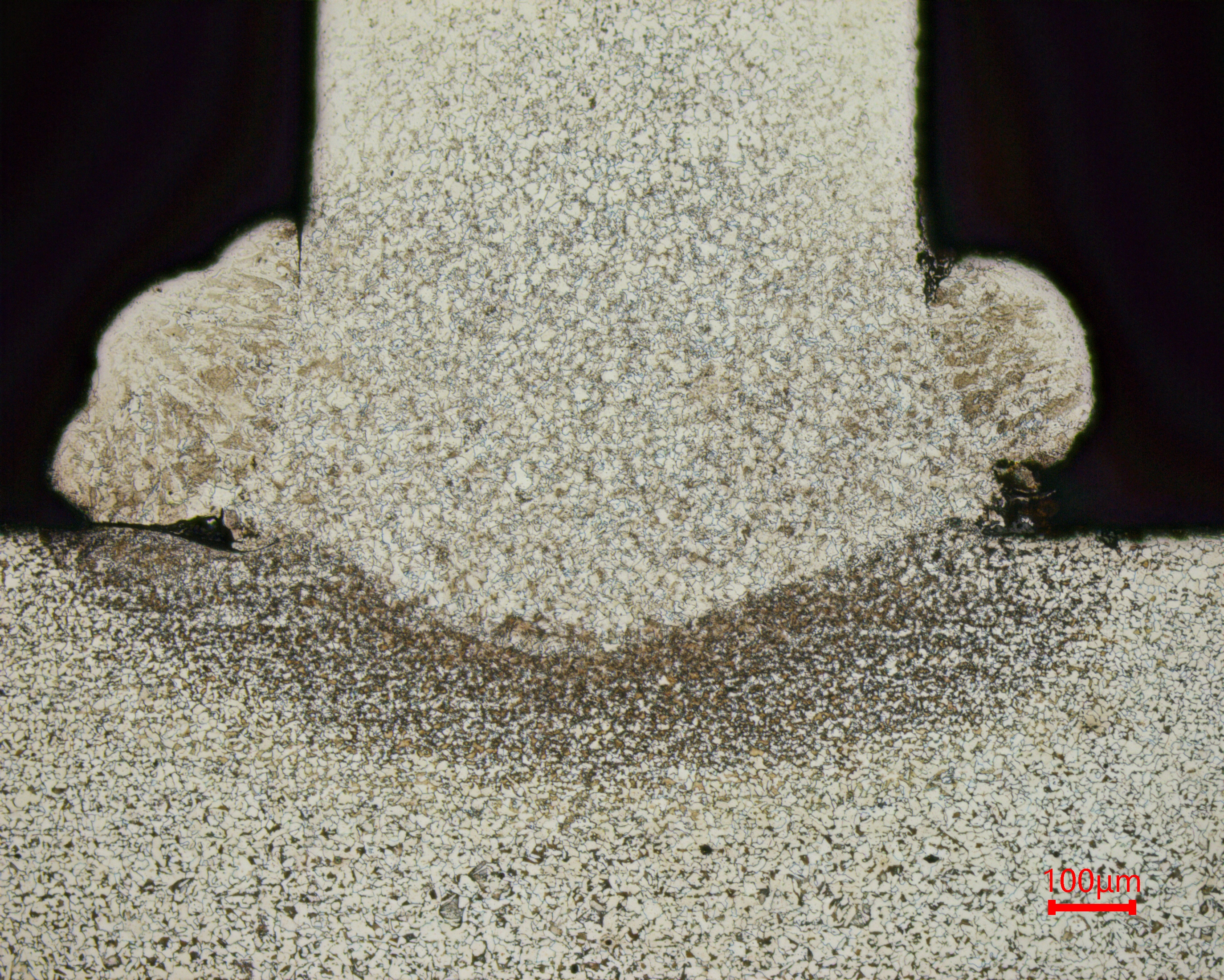

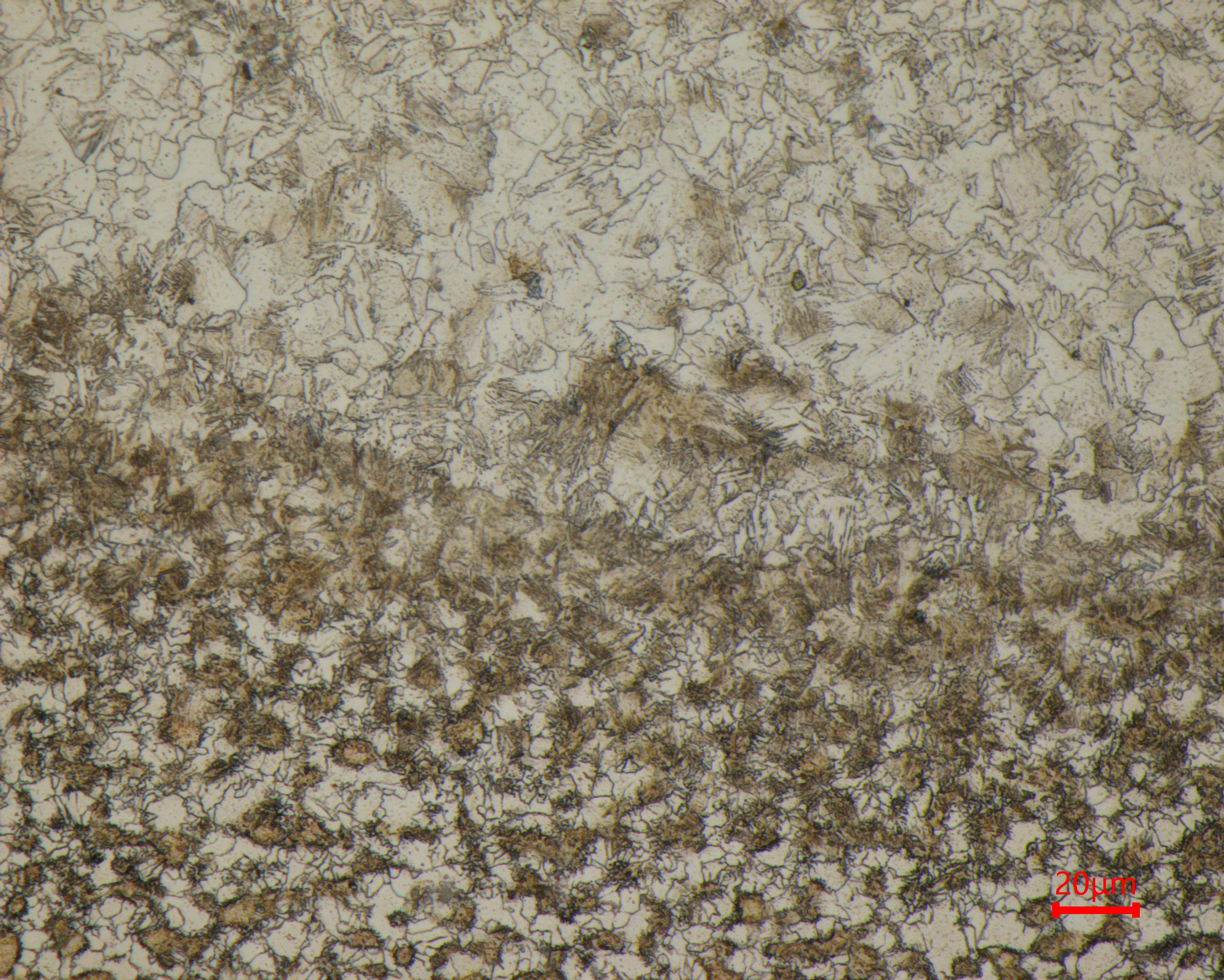

That’s where metallographic inspection comes in as a critical quality guard! By analyzing the microstructure of welded joints, we can evaluate welding process suitability, check fusion adequacy, and detect issues like overheating or incomplete fusion—effectively preventing early failures.

Our professional metallographic preparation protocol for finned tube welding:

1️⃣ Grinding: P400

2️⃣ Fine Grinding: POS + 9μm PD-WT

3️⃣ Rough Polishing: YS + 3μm PD-WT

4️⃣ Fine Polishing: ZN - 50nm T401

#Trojan #WeldingQuality #MetallographicInspection #QualityAssurance #Trojanmetallography #Metallography
