CT - 150 Low-Speed Precision Cutting Machine Manufacturers

Home / Product / CUTTING / Cutting Equipment / CT - 150 Low-Speed Precision Cutting Machine

Home / Product / CUTTING / Cutting Equipment / CT - 150 Low-Speed Precision Cutting Machine

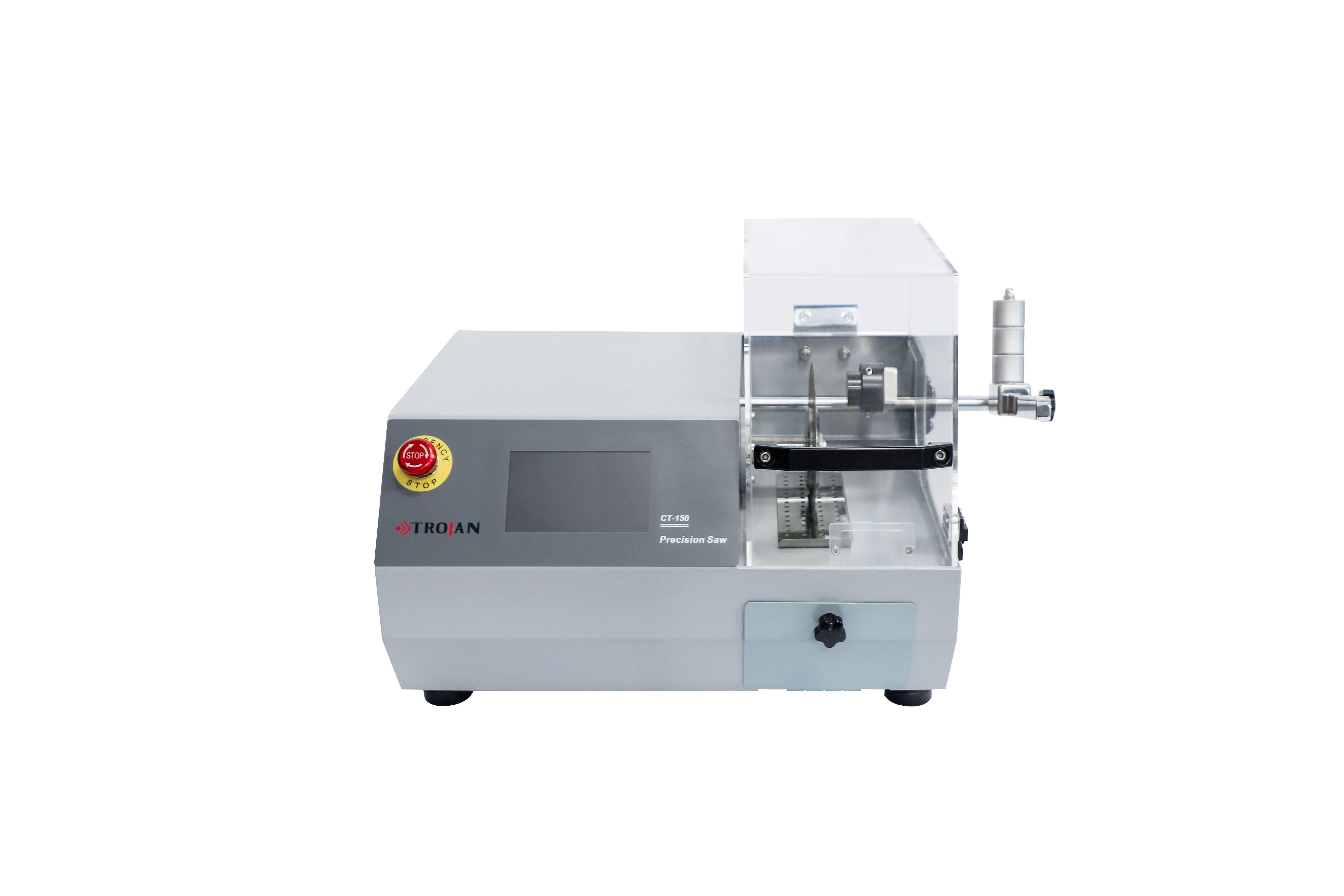

CT - 150 Low-Speed Precision Cutting Machine

CT - 150 Low-Speed Precision Cutting Machine

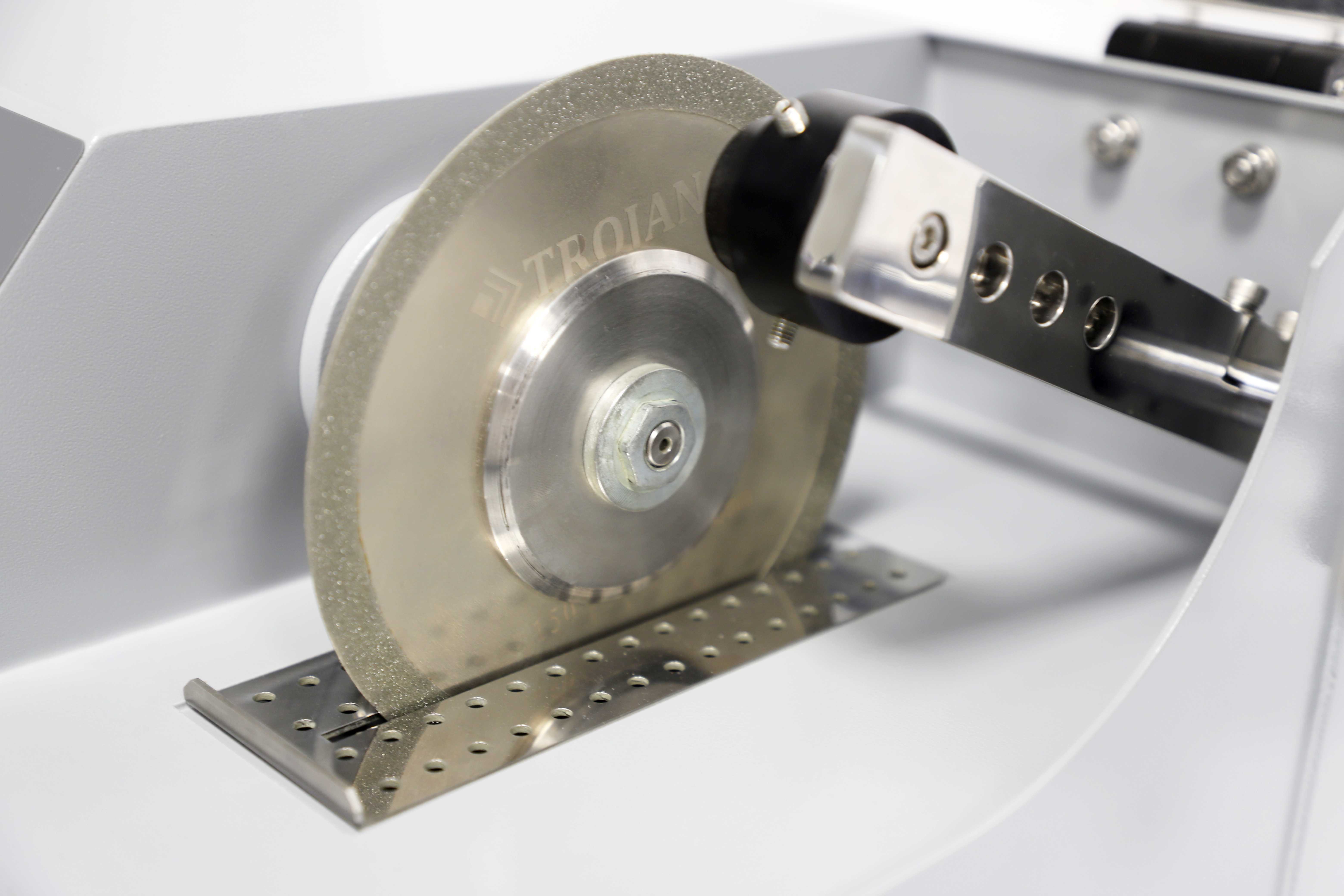

CT-150 low-speed precision cutting machine is suitable for precise sectioning of various hard materials, especially for the precise cutting of various small metal and non-metal components as well as various electronic components. This machine can be equipped with diamond cutting blades or resin blades of other materials to meet the cutting needs of various samples. The machine comes with a variety of sample fixtures, allowing workpieces to be positioned for cutting at optimal angles and enabling precise fine-tuning of the horizontal feed position of the workpiece. This machine is an ideal pre-metallographic processing equipment for universities, research institutions, and production enterprise laboratories.

E-mail: [email protected]
Download Contact Us Send E-mail
  • CT - 150 Low-Speed Precision Cutting Machine
  • CT - 150 Low-Speed Precision Cutting Machine
  • CT - 150 Low-Speed Precision Cutting Machine

Product Details

Product features
1、Cutting wheel speed adjustable from 50-600rpm;
2、Constant speed cutting achieved via adjustable counterweight;
3、Equipped with a 5-inch touch screen for program control and convenient operation;
4、X-axis segmented precision cutting function;
5、Quick and secure sample clamping with accurate positioning;
6、The device includes various fixtures for cutting irregularly shaped workpieces.

Technical parameter

Model

CT-150
Cutting Wheel  Speed

50-600 rpm
Diameter

Φ150 mm
Center Hole

Φ12.7 mm
Electrical Voltage/Frequency

220V/50Hz
Motor Power

0.5 kw
Touch Screen

5-inch
X-axis Feed

Automatic
Cutting Capacity Max. Diameter

Φ40 mm
X-axis Travel

X-direction (Left/Right): 50 mm

Accuracy: 0.02 mm
Dimensions W×D×H

450×320×360 mm
Weight

26kg

Our Advantage

  • High Quality

    Our production capacity can meet the needs of different customers with different purchase quantities.

  • Preferential price

    As a professional China Custom CT - 150 Low-Speed Precision Cutting Machine Manufacturers, We have our own equipment, one-stop production, factory direct sales, high quality and low price.

  • Custom service

    We have a strong and production team, which can develop and produce custom CT - 150 Low-Speed Precision Cutting Machine according to the product description or sample provided by customers.

  • Rich products

    It can meet the development and production of many different industries.
