Search
English

Language

+86-138-1482-9868

Before you start shopping

We use first- and third-party cookies including other tracking technologies from third party publishers to give you the full functionality of our website, to customize your user experience, perform analytics and deliver personalized advertising on our websites, apps and newsletters across internet and via social media platforms. For that purpose, we collect information about user, browsing patterns and device.

By clicking "Accept All Cookies", you accept this, and agree that we share this information with third parties, such as our advertising partners. If you prefer, you can choose to continue with "Only Required Cookies". But keep in mind that blocking some types of cookies may impact how we can deliver tailored content that you might like.

For more information and to customize your options, click on "Cookie settings". If you want to learn more about cookies and why we use them, visit our Cookie Policy page at any time. Cookie Policy

Accept All Cookies Close

News

Home / News / Knowledge / The Secrets of Blades Under Microscope- Microstructure of Traditionally Forged Blade Blanks

Home / News / Knowledge / The Secrets of Blades Under Microscope- Microstructure of Traditionally Forged Blade Blanks

The Secrets of Blades Under Microscope- Microstructure of Traditionally Forged Blade Blanks

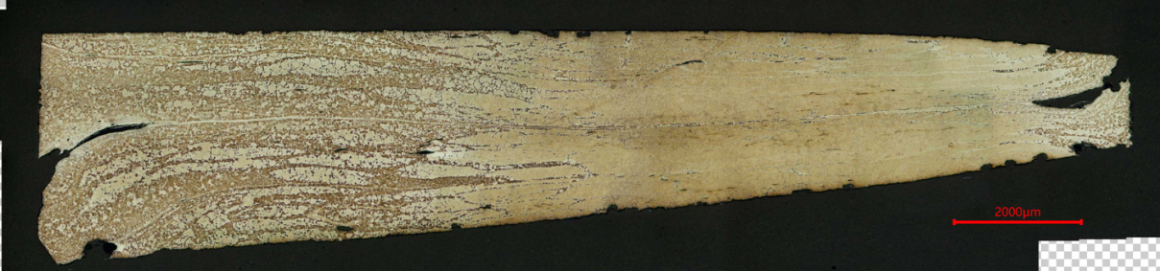

Blade Blank Microstructure Overview

Beneath the sharp edges of traditionally forged knives lie hidden changes in metallographic structures. With proper specimen preparation and microscopic inspection, we can fully figure out the merits and flaws of classic forging techniques.

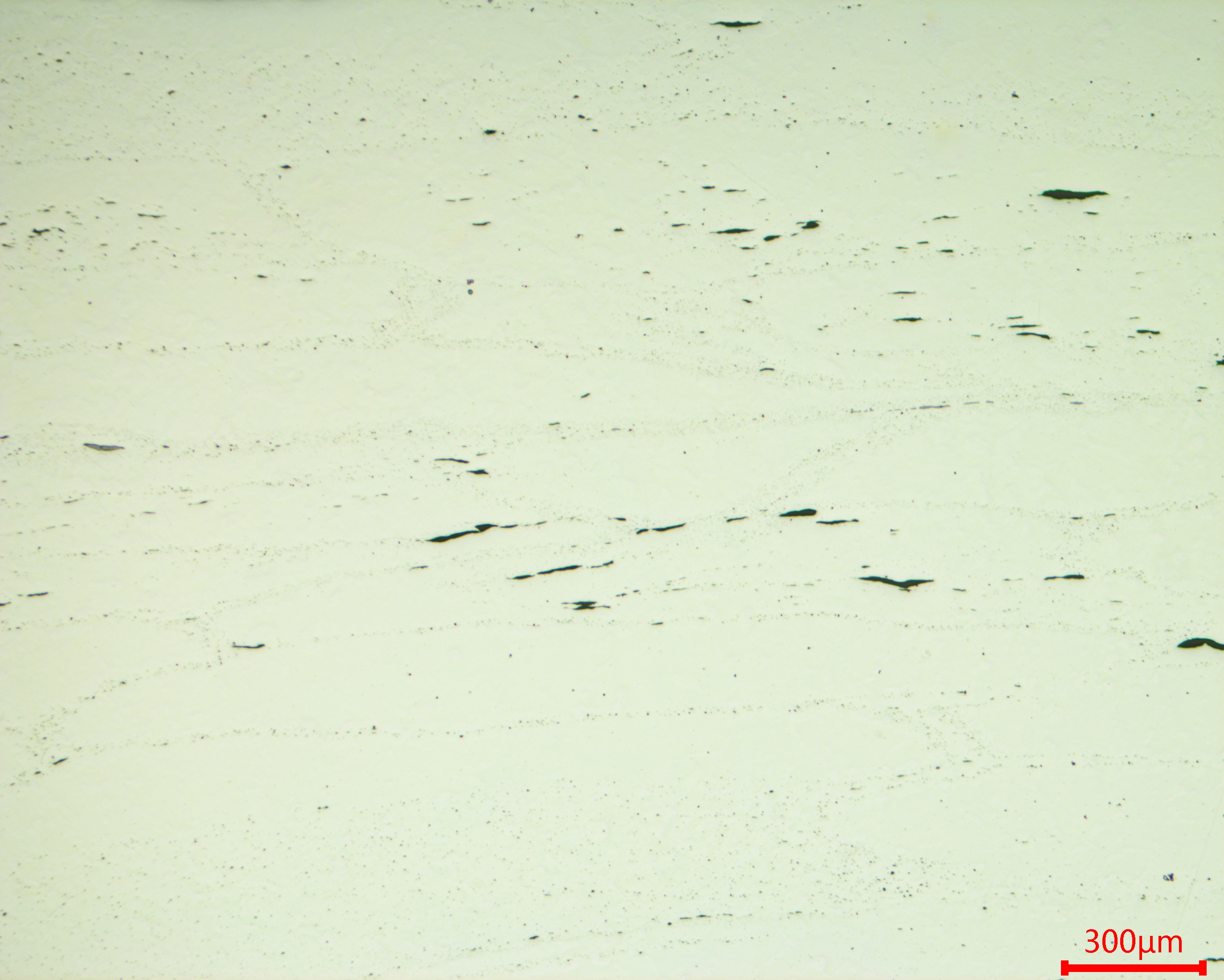

Inclusions and Oxides

Metallographic views show obvious slag inclusions from embedded scale layers and high-temperature induced decarburization zones at folded forging joints. These parts cannot form hard martensite after quenching, only ductile pearlite is obtained instead.

Clear structural gradients exist from blade spine to cutting edge.

Microstructure Gradient Area A

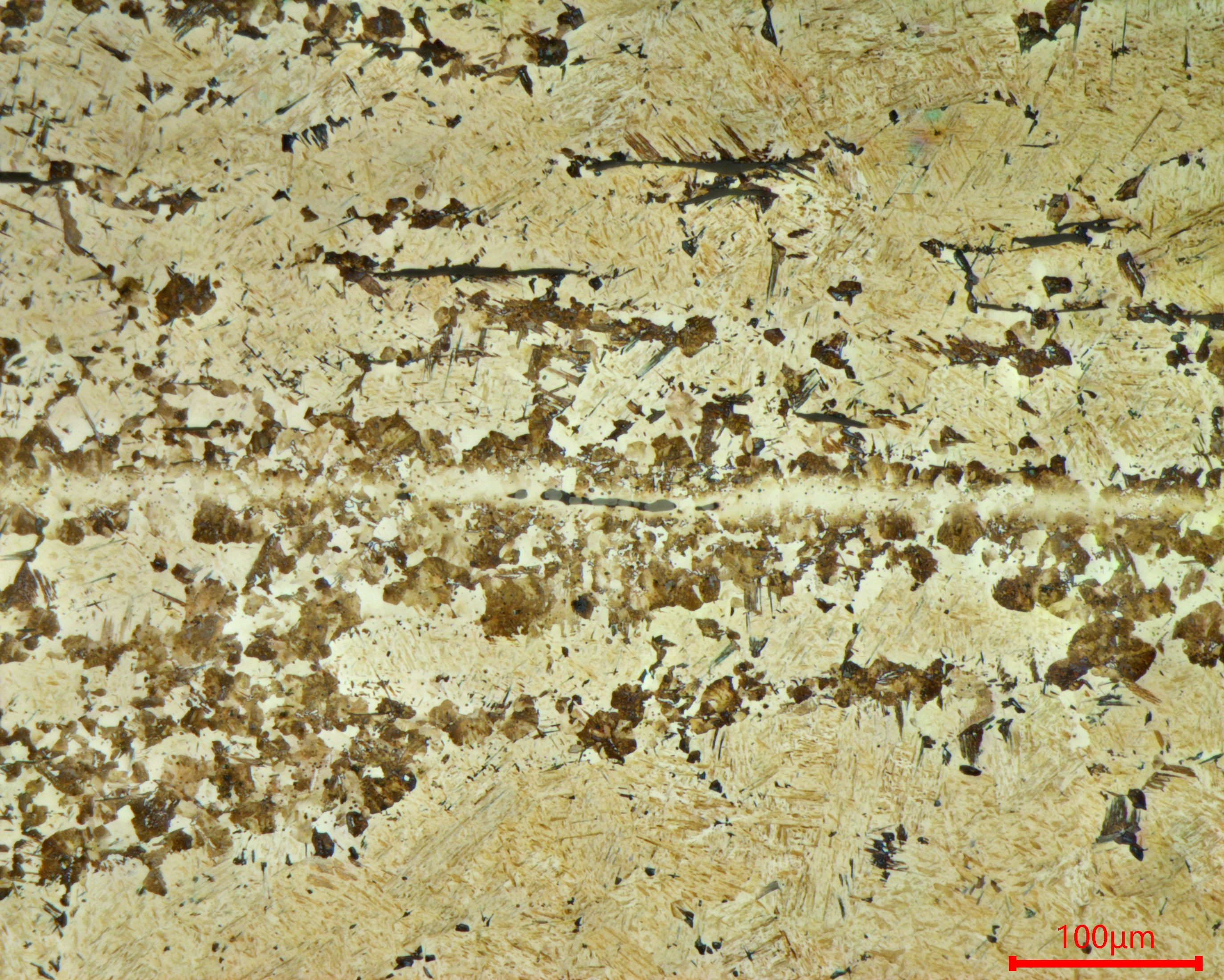

Microstructure Gradient Area B
  • The spine adopts normalized pearlite with great toughness and low hardness.
  • The transition zone presents mixed pearlite and martensite, caused by inadequate quenching cooling rate and oxidative decarburization during folding forging.
  • The cutting edge, which is supposed to gain high hardness via full martensite structure, suffers broken material continuity due to inclusions. These weak points easily lead to stress concentration and potential service failure.

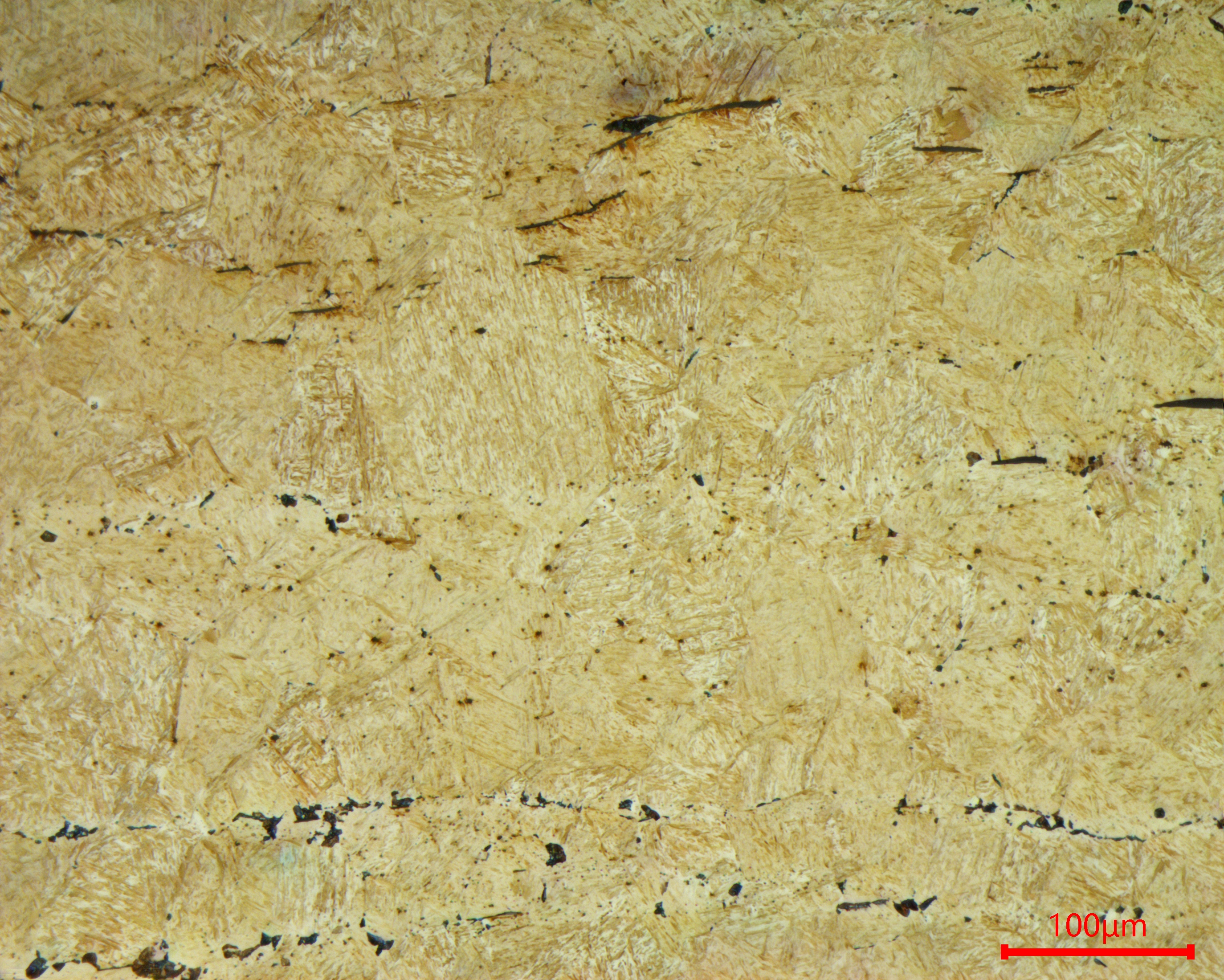

Detailed Martensite/Pearlite Structure
The tiny microscopic world interprets the core rule of "Process-Structure-Performance". Metallographic analysis bridges traditional forging art and modern material science, making ancient forging craftsmanship shine brighter than ever.
#Trojan #Trojanmetallography #Metallography #ForgingTechnology #MaterialAnalysis #KnifeMaking #MicrostructureStudy
PREV：No previous article
NEXT：Schottky Diode Metallographic Preparation

Recommended
