Product Features:
1. The main body is formed through a single casting process and undergoes prolonged aging treatment. Compared to spliced panel construction, this design minimizes long-term deformation and effectively adapts to various harsh environments.
2. It features automotive-grade baked enamel paint, which offers a high-quality finish, excellent scratch resistance, and retains a like-new, glossy appearance for years.
3. The optical system, designed by senior optical engineers, provides clear images and can function as a simple microscope. With adjustable brightness and comfortable viewing, it minimizes eye strain during prolonged operation.
4. The tester ensures high measurement accuracy and is characterized by simple operation, high sensitivity, user-friendly handling, and stable readings. It utilizes a closed-loop electronic control system to apply test forces, fully automating the process of force application, dwell time, and removal. Hardness values are displayed directly. Its modular design allows for immediate startup and use without the need for installing weights.

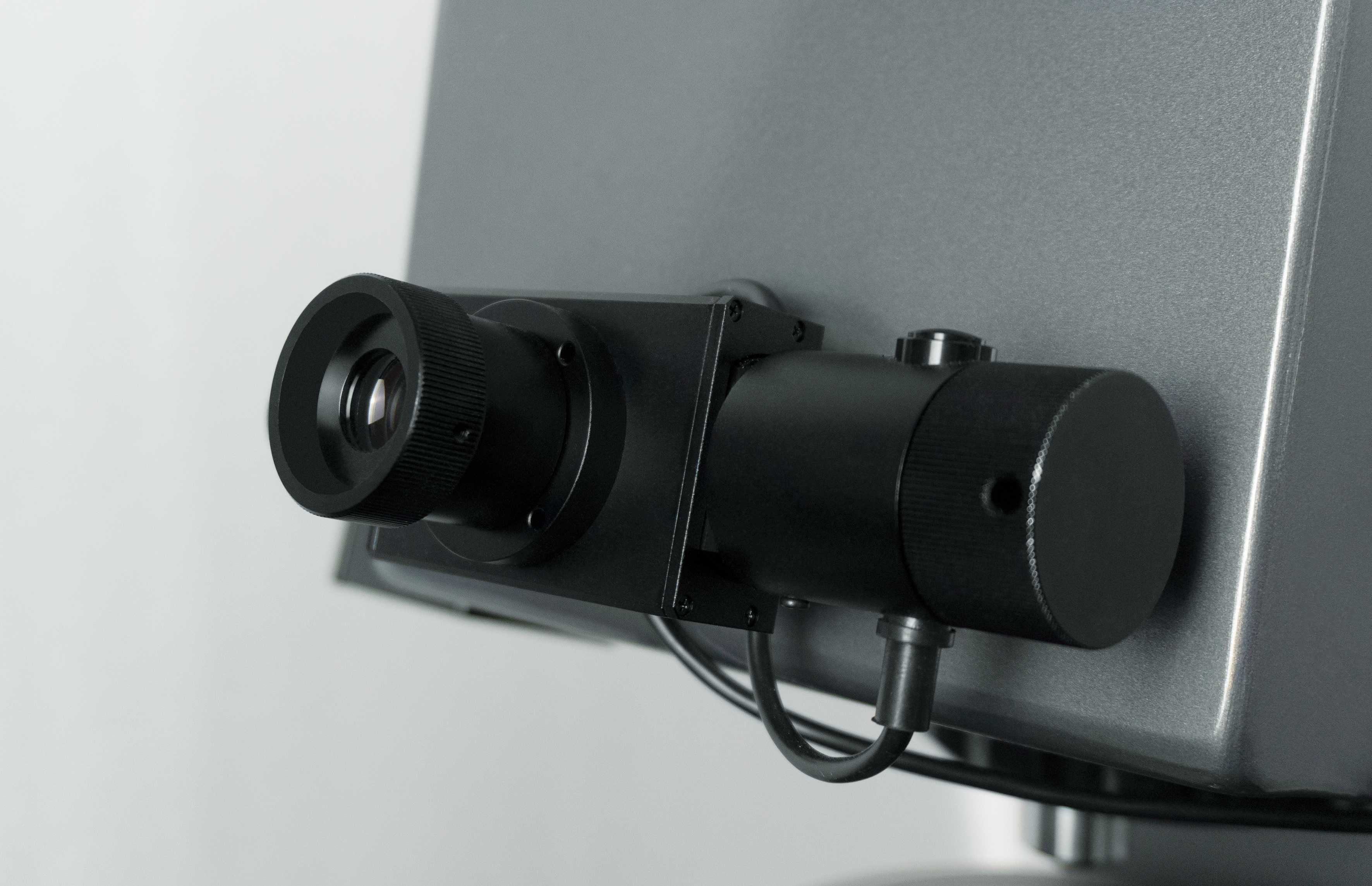

5. Options include a CCD image processing system and a video measurement device.
6. Its accuracy complies with GB/T4340.2, ISO6507-2, and ASTM E384 standards.
| Model |
7MHVS-5A |
| Testing force |
0.1Kgf、0.2Kgf、 0.3Kgf、0.5Kgf、1Kgf、2Kgf、 2.5Kgf 3Kgf、5Kgf |
| Data Input Method |
Automatic |
| Turret Type |
Automatic |
| Total Magnification |
100X 400X |
| Hardness Testing Range |
5~3000HV |
| Light Source |
Halogen Lamp |
| Data Output |
Built-in Printer |
| Minimum Step Distance |
0.0001mm |
| Maximum Specimen Height |
175mm |
| Distance from Indenter Center to Outer Wall |
125mm |
| Dimensions |
320x580x620mm |
| Weight |
70Kg |
| Applicable Standards |
GB/T4340.2 , JJG151 |
