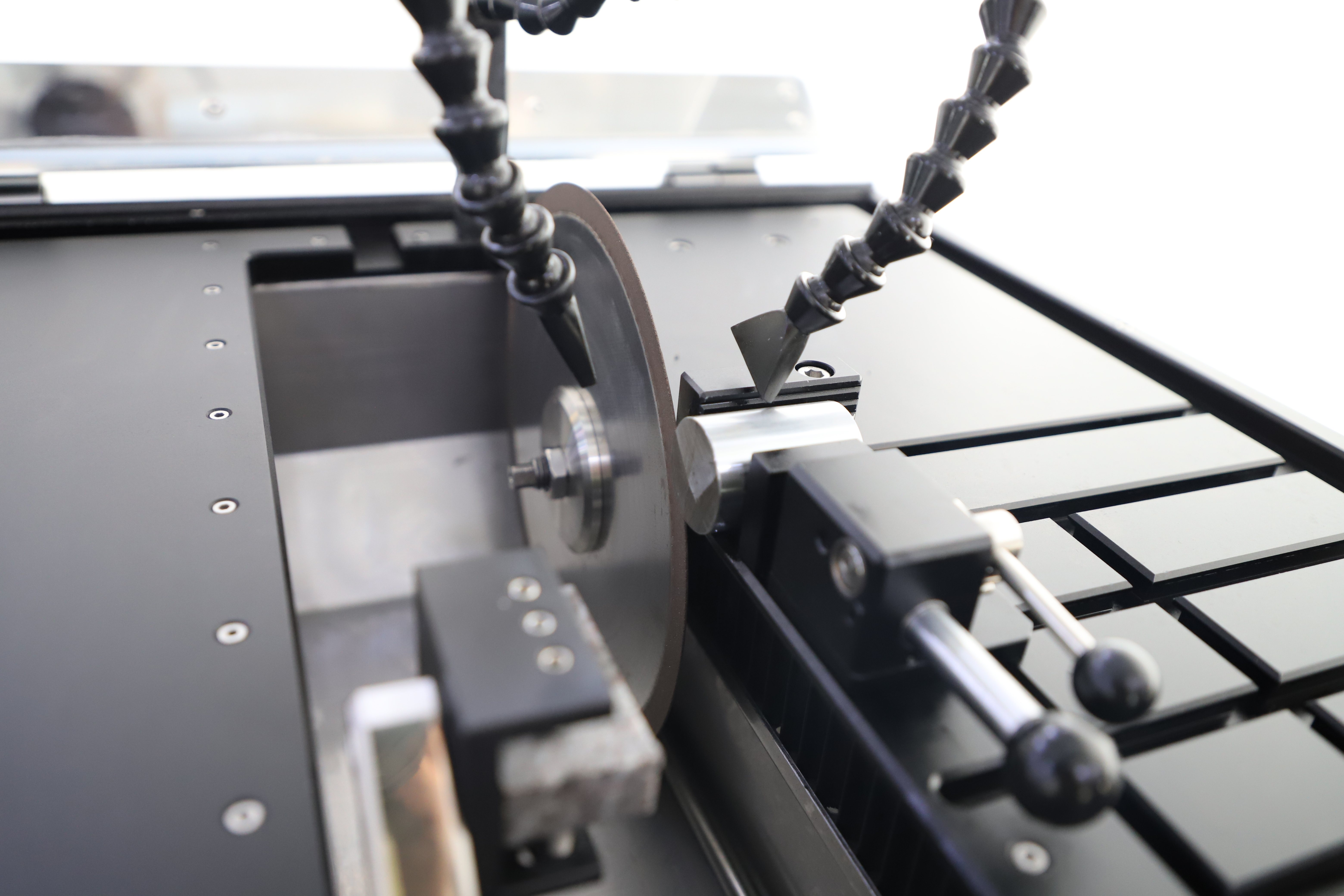

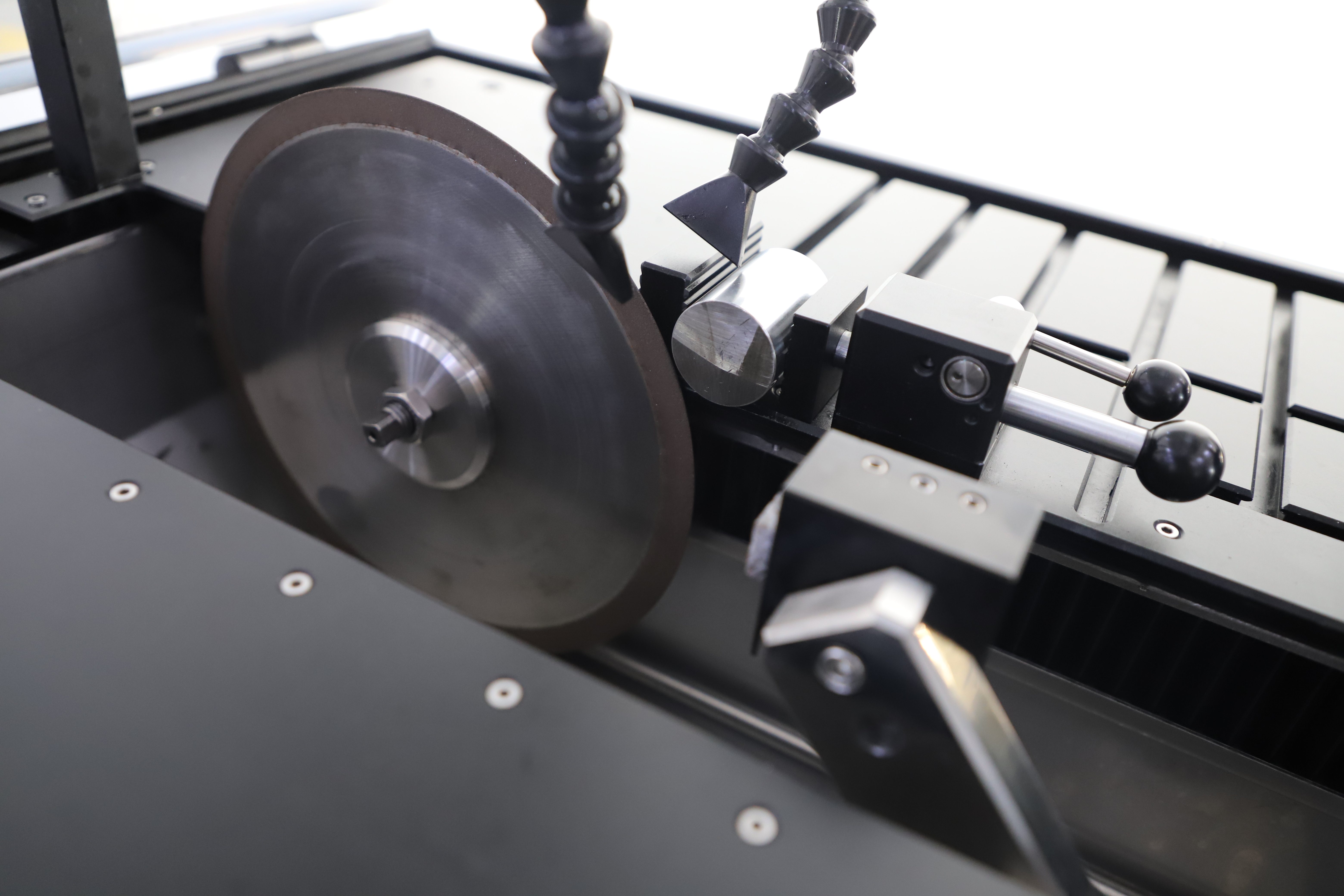

The FlexCUT-2 manual-automatic cutting machine is equipped with a variety of fixtures, enabling it to cut irregular-shaped workpieces and is suitable for manual-automatic cutting applications involving various metal materials, PCBs, circuit boards, semiconductors, crystals, ceramics, quartz glass, and rock sample specimens.
Features
1. Cutting speed precisely adjustable from 0.01-5mm/s;
2. Equipped with an 8.8-inch touchscreen and featuring both manual and automatic programmable control, it offers user-friendly operation;
3. X-axis segmented precision cutting function;
4. Quickly fixes and clamps the specimen with precise positioning;

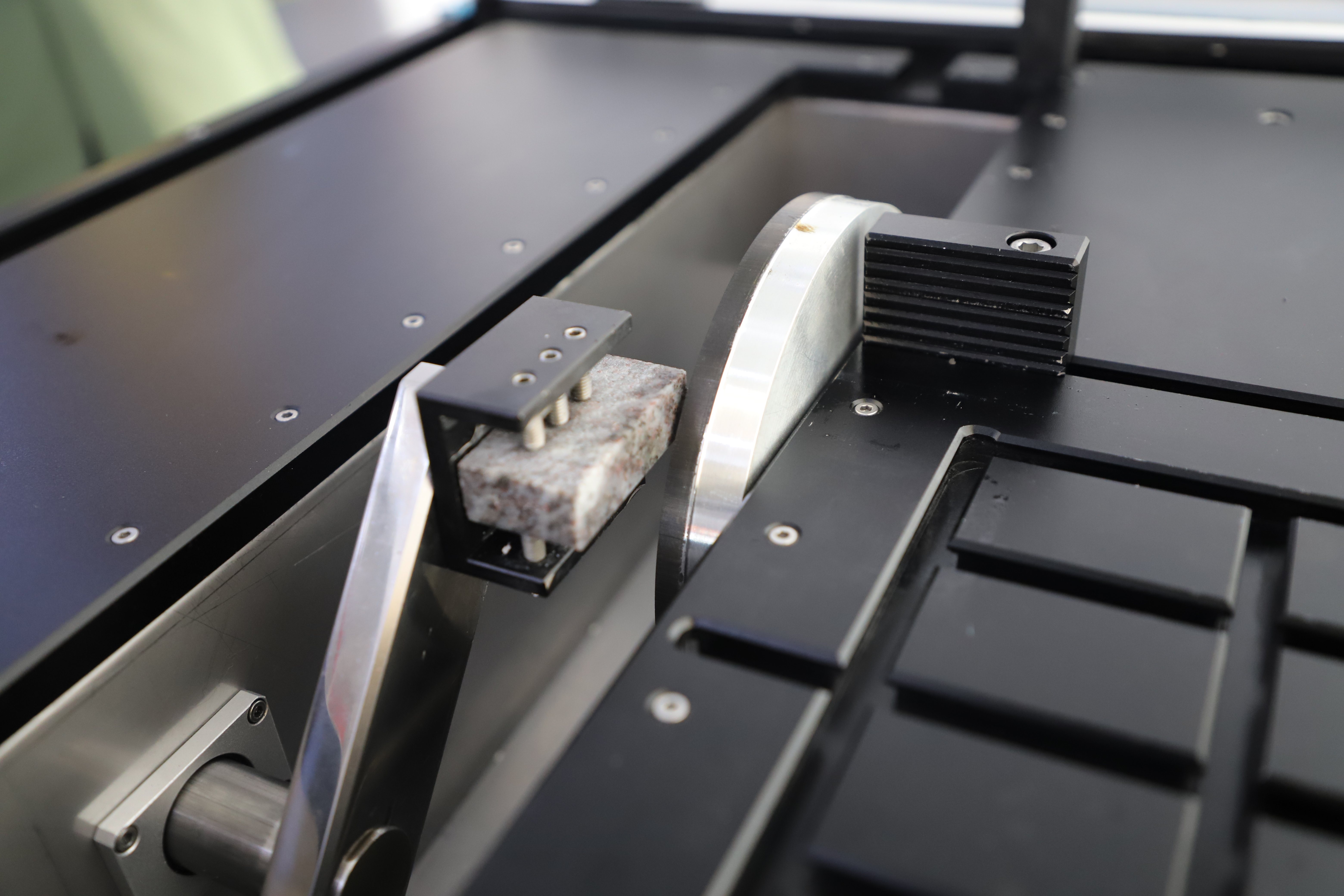

5. Equipped with various fixtures for cutting irregularly shaped workpieces;
6. Manual/automatic integration with built-in overload protection to ensure perfect cutting results.
Technical Data
| Model | FlexCUT-2 | |
| Cutting Wheel | Diameter | φ203mm |
| Speed | 1000~5000rpm, variable speed | |
| Flange Size | φ70mm | |
| Center Hole | φ12.7mm / φ22mm | |
| Cutting Capacity | Max Diameter | φ50mm |
| Max Square Section | 50x200mm | |
| Y-axis Travel | 220mm | |
| Y-axis Feed | Manual control or automatic feed | |
| X-axis Travel | 50mm | |
| X-axis Precision | 0.02mm | |
| Electrical | Power Input | 220V/50Hz + Ground wire |
| Power | 1.5KW | |
| Panel | 8.8-inch touchscreen | |
| Intelligent Cutting | Cutting Mode | Horizontal cutting |
| Feed Mode | Constant speed / Pulse / Auto-adjusting / Manual | |
| Dimensions | WxDxH | 550x660x420mm |
| Weight | 100Kg | |
.jpg?imageView2/2/w/400/format/jpg/q/75 "Abrasive Wheels")
.jpg?imageView2/2/w/400/format/jpg/q/75 "PL-W Polishing Lubricants")
Basing on China, TROJAN has a strong focus on international sales, for now ,TROJAN has sold FlexCUT-2 Automatic Precision Cut-Off Machine to more than 40 countries, such as Europe, U.S.A, Korea and Southeast Asia.
