Product Description

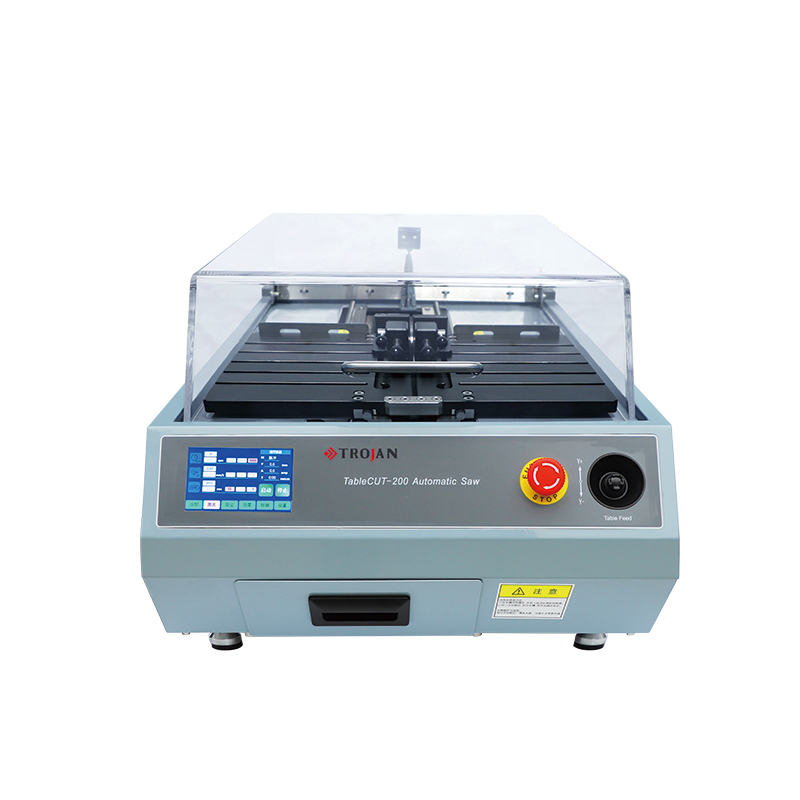

TableCUT-200 is a manual-auto precision cut-off machine which equipped with a variety of fixtures that can cut irregular-shaped workpieces, suitable for various metal materials, PCB circuit boards, semiconductors, crystals, ceramics, quartz glass and petrographic samples, etc. It is one of the necessary equipment for sample preparation in the laboratories of factories, R&D Institute and college.
Features
1. Equipped with 5"touch screen, program control cutting process, easy to operation;
2. The cutting speed is precisely adjustable from 0.01-5mm/s;
3. The speed of the cut-off blade is adjustable from 500-3000rpm, with speed pre-set buttons;
4. Laser alignment which can locate the cutting routine precisely, quick clamping the fixture;
5. Auto quick find the origin in idle speed, saving cutting time;
6. Dry & wet cutting method, the whole machine is simple and beautiful in hidden cooling system;
7. A variety of fixtures has equipped which can cut irregular-shaped workpieces, automatic fixtures is optional;
8. Overload protection & 4 cutting modes to ensure perfect cutting results.
Constant cutting: for easy cutting sample in quick cutting.
Pulsing cutting: for easy surface burning sample.
Speed automatic adjustment cutting: adjust the cutting speed automatically which can improve the cutting quality and protect the Motor.
Manual cutting: the speed can be setting in control speed.Application
Ferrous metal, non-ferrous metal；
Castings, heat treatment samples, forgings；
Semiconductor, ceramics (with special cut-off wheels)；
Other metal and non-metal materials；
Technical parameter
|
Model |
|
TableCUT-200 |
|
Wheel |
Speed |
500-3000 rpm |
|
Diameter |
Φ200 mm |
|
|
Arbor |
Φ22 mm |
|
|
Electrical |
Voltage/Frequency |
220V/50Hz |
|
Voltage Power |
1.5 KW |
|
|
Touch Screen |
5 inch |
|
|
Y-axis Feeding |
Manual movement via joystick or automatic feed |
|
|
Cutting Capcity |
Diameter |
Φ50 mm |
|
Square |
50*126 mm |
|
|
Table |
Dimension(W*D) |
465*270 mm |
|
Travel |
240 mm |
|
|
Cooling Tank |
Capacity |
5L |
|
Dimension |
W*D*H |
570*717*405mm(Close) , 570*717*900mm(Open) |
|
Weight |
63kg |
|
.jpg?imageView2/2/w/400/format/jpg/q/75 "Cut Off Wheels")
.jpg?imageView2/2/w/400/format/jpg/q/75 "AO-P Alumina Suspension")
Basing on China, TROJAN has a strong focus on international sales, for now ,TROJAN has sold TableCUT-200 Automatic Precision Cut-Off Machine to more than 40 countries, such as Europe, U.S.A, Korea and Southeast Asia.
