Micro Thin Precision Sectioning & Thinning Machine

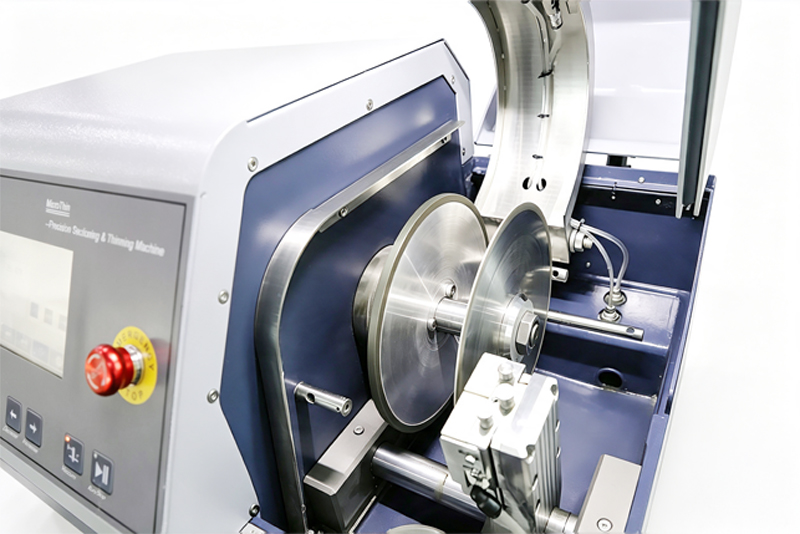

MicroThin is a versatile benchtop cutting and grinding machine designed for precision thin-section preparation. It combines diamond cutting with cup-wheel grinding for rapid sectioning and precise thickness reduction. An integrated vacuum system securely holds specimen slides during cutting and grinding, while the precision servo system provides motorized control of cutting and grinding thickness. MicroThin is ideal for precise thinning of petrographic, medical, ceramic, concrete, and other material specimens.

Features

1. Diamond Cutting Wheel: φ200x22x1.2mm; CBN Grinding Wheel: φ200x28x10 mm;

2. Accommodates up to three 46x27mm specimen slides;

3. Integrated cutting and grinding for rapid sectioning and precision thinning;

4. Precision servo system with motorized thickness control;

5. Integrated vacuum system for secure holding of slide-mounted specimens;

6. 7-inch touchscreen with digital thickness setting and display;

7. Custom parameter storage for repeatable preparation;

8. Optional manual cutting stage for rapid manual sectioning.

Technical Data

Model		MicroThin
Cutting	Cut-off Wheel Diameter	φ203mm
	Arbor Diameter	φ22mm
	Wheel Speed	500~2800rpm
	Maximum Specimen Thickness	15mm
Grinding	Grinding Wheel Diameter	φ203mm
	Arbor Diameter	φ28mm
	Wheel Speed	500~2800rpm
	Maximum Specimen Thickness	5mm
Motor	Spindle Motor	750W, 2800rpm
Motor	Feed Motor	400W, control accuracy: ±5um
Specimen	Glass Slide Size	46x27mm
Manual Cutting	Cutting Stage Size	140x370mm
	Maximum Specimen Size	140x160mm
	Maximum Cutting Cross-section	60x60mm
Vacuum System	Vacuum Pump	375W, 0 to -80kPa, adjustable vacuum level
Vacuum System	Filtration	Manual drainage
Water Supply & Drainage	Water Supply	φ8mm O.D. push-in fitting, pressure <0.3 MPa
Water Supply & Drainage	Drainage	φ32mm I.D. corrugated hose

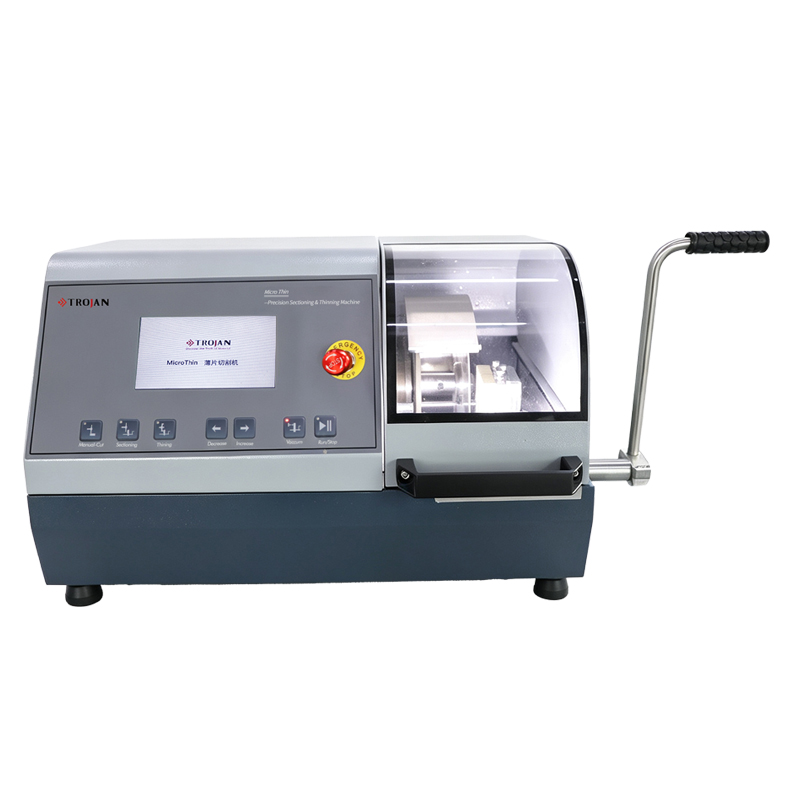

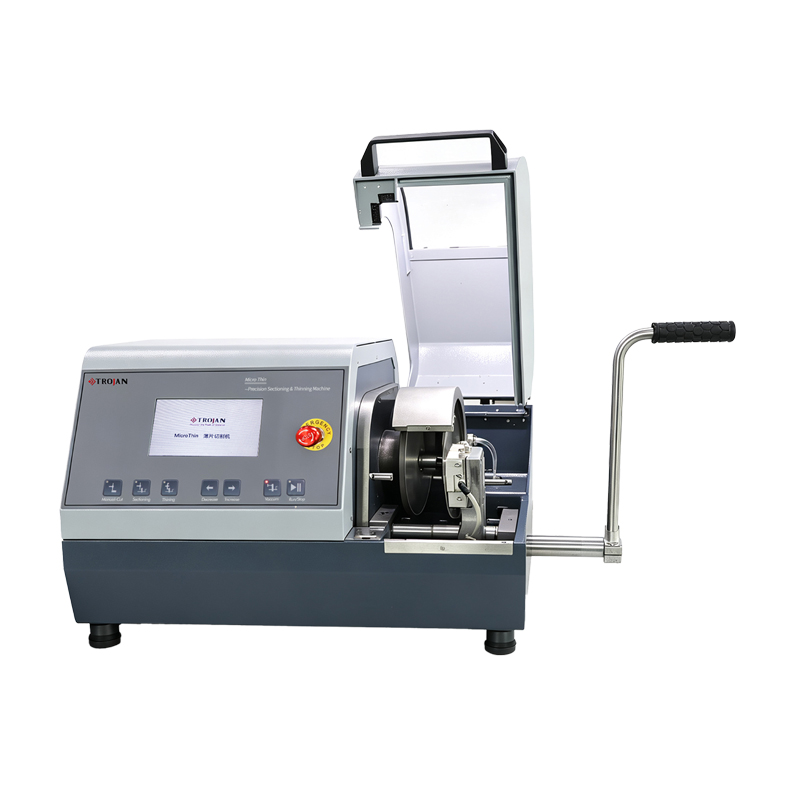

Dimensions	WxDxH	680x460x400mm (Door Closed); 680x460x650mm (Door Open)
Weight		65Kg
