Beta-300 Pro Automatic Cut-off Machine

Beta-300 Pro Automatic Cut-off Machine

Beta-300Pro is an automatic cut-off machine which adopted advanced intelligent control & touch screen operation technology. With three-axis joystick, and laser alignment and larger workbench makes easy to operate. Beta-300Pro has integrated a variety of cutting methods and techniques, even cutting large-section sample for heavy-duty, can also get excellent cutting surface. Its automatic cutting mode can achieve the highest level of reproducibility of cutting processes.

Product Details

Features

1. Equipped with 7"touch screen & saving 20 programs;

2. Can automatic cutting from 3-axis X-Y-Z, laser alignment which can display the cutting routine, rapid position;

3. Various cutting modes can meet different cutting requirements;

4. According to the hardness of the material and preset cutting current, intelligent adjustment & optimization the cutting progress;

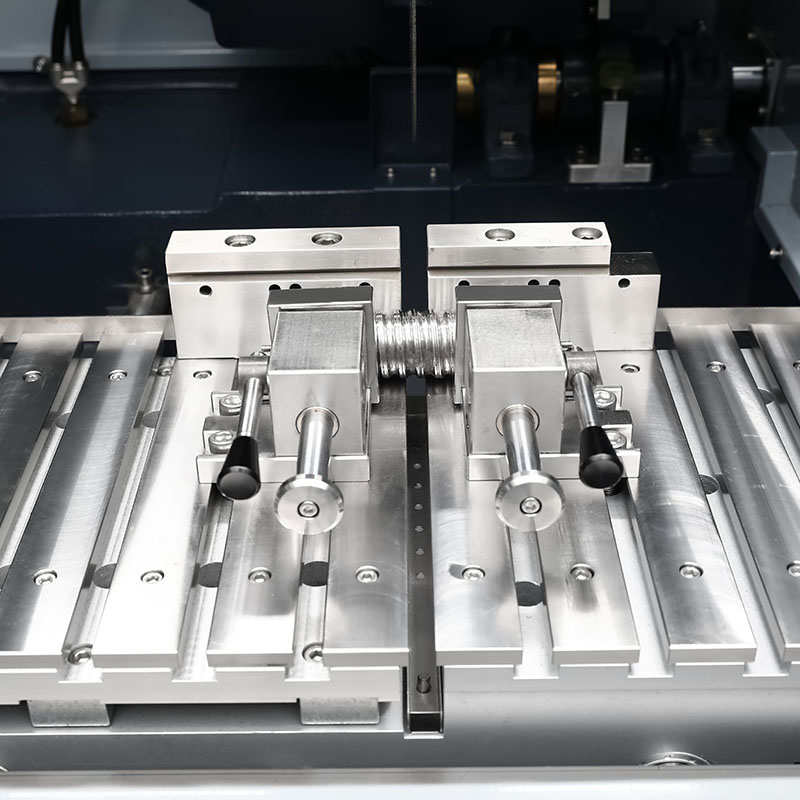

5. T-slot vises which easy to clamping and matches variety of shaped fixture;

6. Pulsing cutting - adjust the cutting speed automatically which can get better surface quality;

7. Auto detect whether cut-off.

Application

Ferrous metal, non-ferrous metal;

Castings, heat treatment samples, forgings;

Semiconductor, ceramics (with special cut-off wheels);

Other metal and non-metal materials;

Technical parameter

Model

Beta 300 Pro

Wheel

Speed

800~3500rpm

Dia.

Φ300mm

Arbor size

32mm

Electronic

Input

3x380V/50Hz+ground line

Power

Total power 5.0KW, Cutting power 4KW

Safety



Emergency stop

Press to disconnect the control loop and main power

Safty lock

It can not start while the door open and the door can not open during cutting

Joystick

Should operated by 2 hands simultaneously

Over Current Protection

The machine will be stopped when the current over loaded

Cutting Force

Monitor the cutting force, the machine will stop if the cutting force on theblade higher than thesafe value.

Control

Display / Control

7”touch screen

Z-axis (Chop Cutting)

Automatically: 0.01~5mm/s

Y-axis (Table Feeding)

Automatically: 0.01~5mm/s

X-axis (Paralleled Cutting)

Motor Control by Joystick

Cooling Tank

Capasity Volume

80L

Dimensions

720*550*550mm(W*D*H, with pump installed)

Connector

Water inlet: Φ19 inner diameter high pressure pipe;
water outlet: Φ38 inner diameter hose.

Water way

2 Channels, flow: 50L/min

Intelligent Cutting

Cutting Mode

Y-axial(Table-feed cutting) /Z-axial(Chop cutting)/Y-Z segmented cutting

Speed adjustment method

Constant speed cutting / pulse cutting / automatic speed adjustment

Laser alignment

Yes

Auto find the origin

Yes

Auto detect whether cut-off

The machine will stop automatically after cut-off without setting the cutting depth

Cutting Capacity

Max. dia

Φ110mm

Max. Square section

80*200mm

Table

Dimension

280*536mm

T-slot

12mm

Travel

Z-axis :150mm ;Y-axis :200mm ;X-axis:80mm;

Dimension

W*D*H

979*940*1535mm(Close), 979*940*1881mm(Open)



Weight

Cutter

376kg

The water tank

34kg
