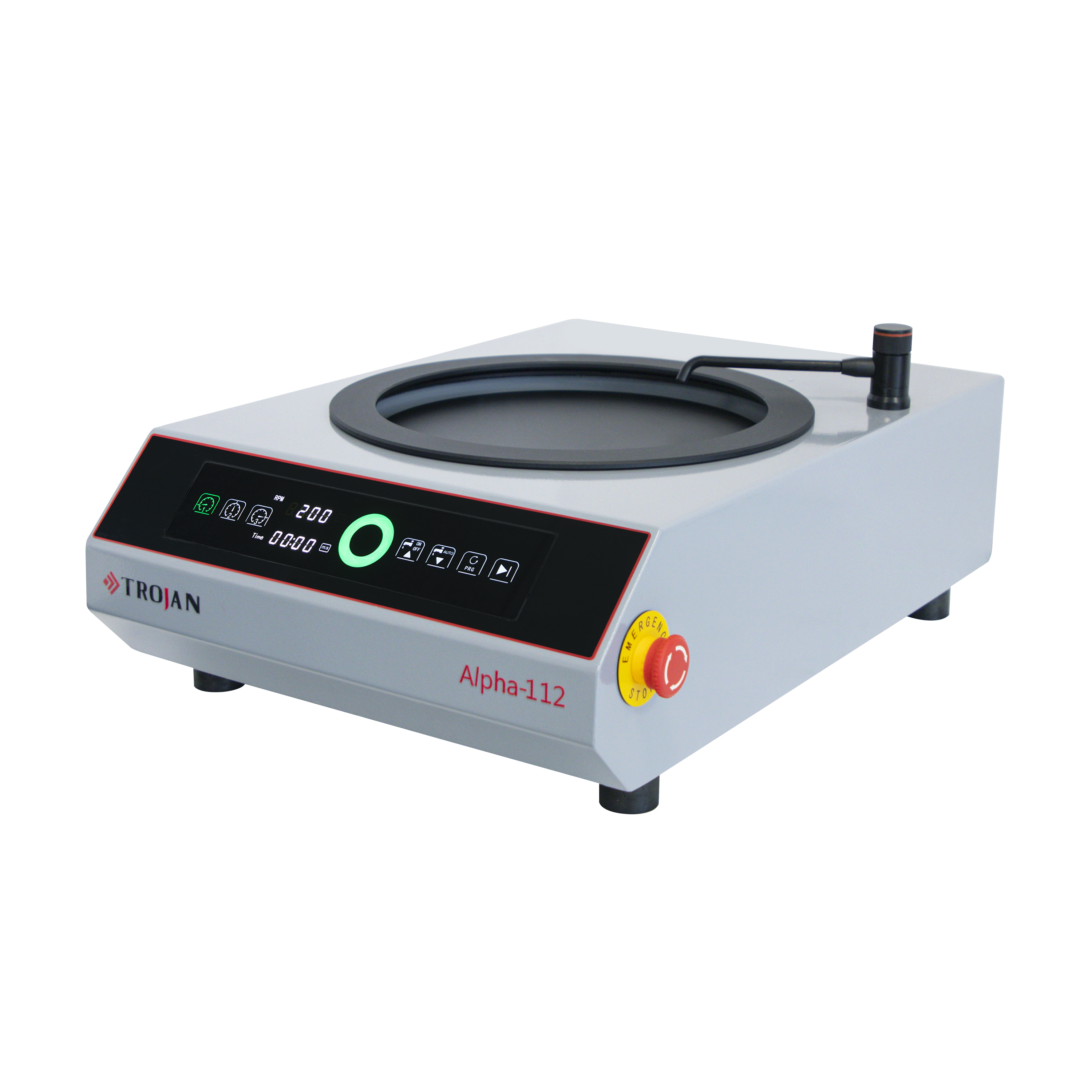

Alpha-112 Manual Grinder and Polisher

Alpha-112 Manual Grinder and Polisher

Product Description

Alpha-112 is a 10”/12” (254/305mm) single disc grinding and polishing machine. This machine is easy to operate and has stable performance, and is especially suitable for grinding and polishing large-size samples.
E-mail: [email protected]
Download Contact Us Send E-mail
  • Alpha-112 Manual Grinder and Polisher
  • Alpha-112 Manual Grinder and Polisher

Product Details

Features

1. The use of a servo motor maintains high torque output even at speeds as low as 50 RPM;

2. 304 stainless steel body, aluminum base, large diameter outlet pipe to avoid the problem of rust and clogging; simple panel simple operation, easy to operate;

3. With the locking function of the working disk, it can meet the fine "hand rubbing" grinding and polishing;

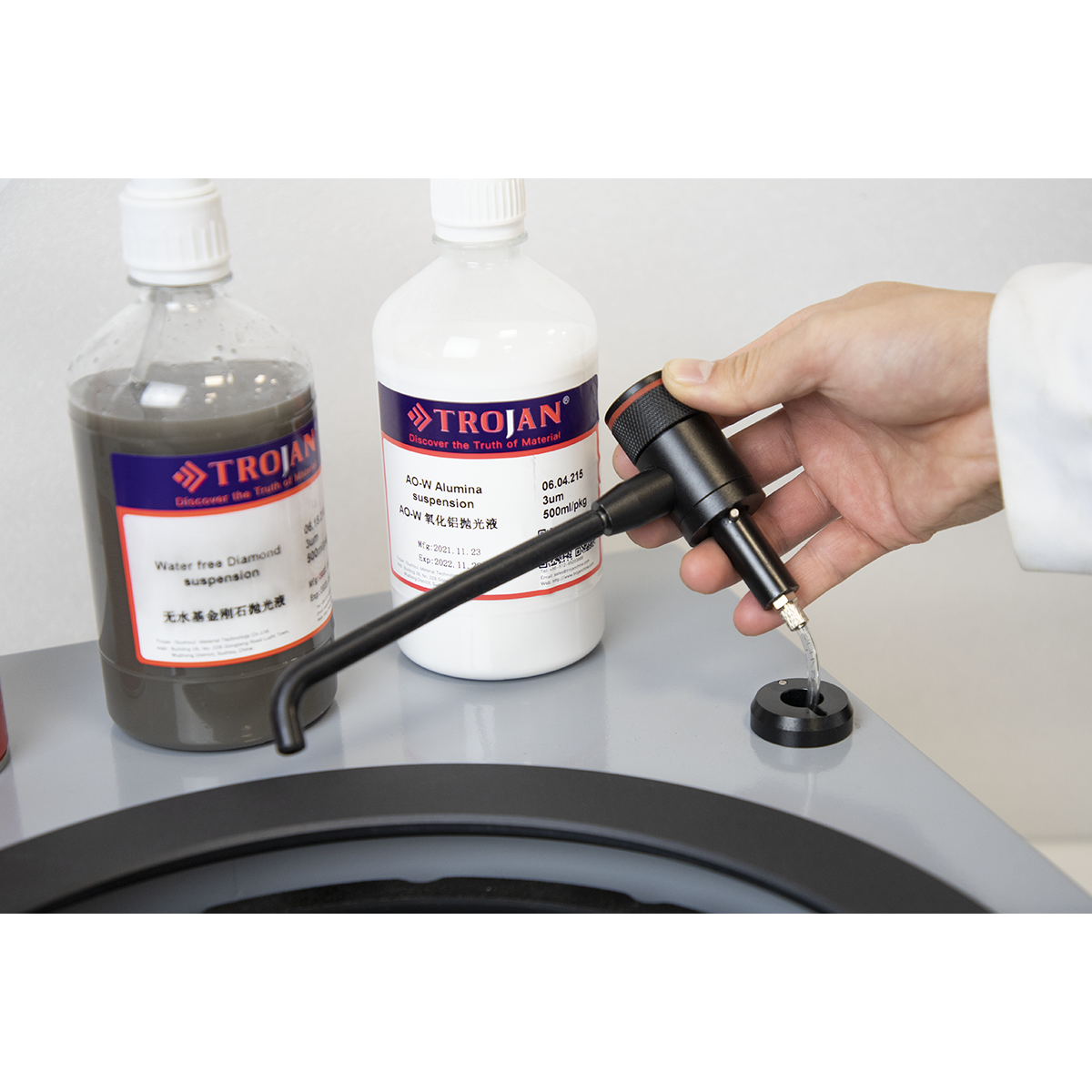

4. Plug-in faucet for easy cleaning and maintenance;

5. Automatic temperature-sensitive cooling system protects the motor from overload and prolongs motor life.


Technical parameter

Model

Alpha-112

Working disc

Diameter

12"/ 305mm

Speed

0-600rpm

Direction

CW/CCW

Torque

10N.m

Electronic

Voltage/Frequency

220V/50Hz (1Ph/N/PE)

Rated Power

750W

Rated Current

4A

Water Supply

Maximum water pressure

<0.3MPa

lnlet connector
Outlet diameter

OD=Φ8mm

OD=Φ32mm

Circulating water tank

Optional

Noise

Measured at a distance of 1 meter

<40dBA

Environment

Tempersture

-20˚C - 60˚C (-4°F -140°F)

Humidity

0-95%RH

Dimension

WxDxH

460×655×288mm

Weight

30kg
