Features
1. Cast aluminum shell, SMC standard loading cylinder, designed to be more reliable and durable;
2. 7-inch touch screen panel, the interface is simple and easy to understand;
3. Adopt two-hand protection button to control the lifting and lowering of the clamping platen;
4. Two pressurization modes: Central Pressure Loading and Individual Pressure Loading; Center loading can be upgraded to quantitative grinding;
5. Dripping system with 4 sets of peristaltic pumps is available;
6. Built-in 20 groups of common grinding and polishing process parameters and user-defined parameters can also be stored;
7. Large diameter side drainage system, not easy to block and drain quickly;
8. Pluggable faucet facilitates cleaning and maintenance of the disk;
9. Built-in automatic temperature-sensing cooling fan to reduce failure rate and enhance working life.
Technical Parameters
| |
|

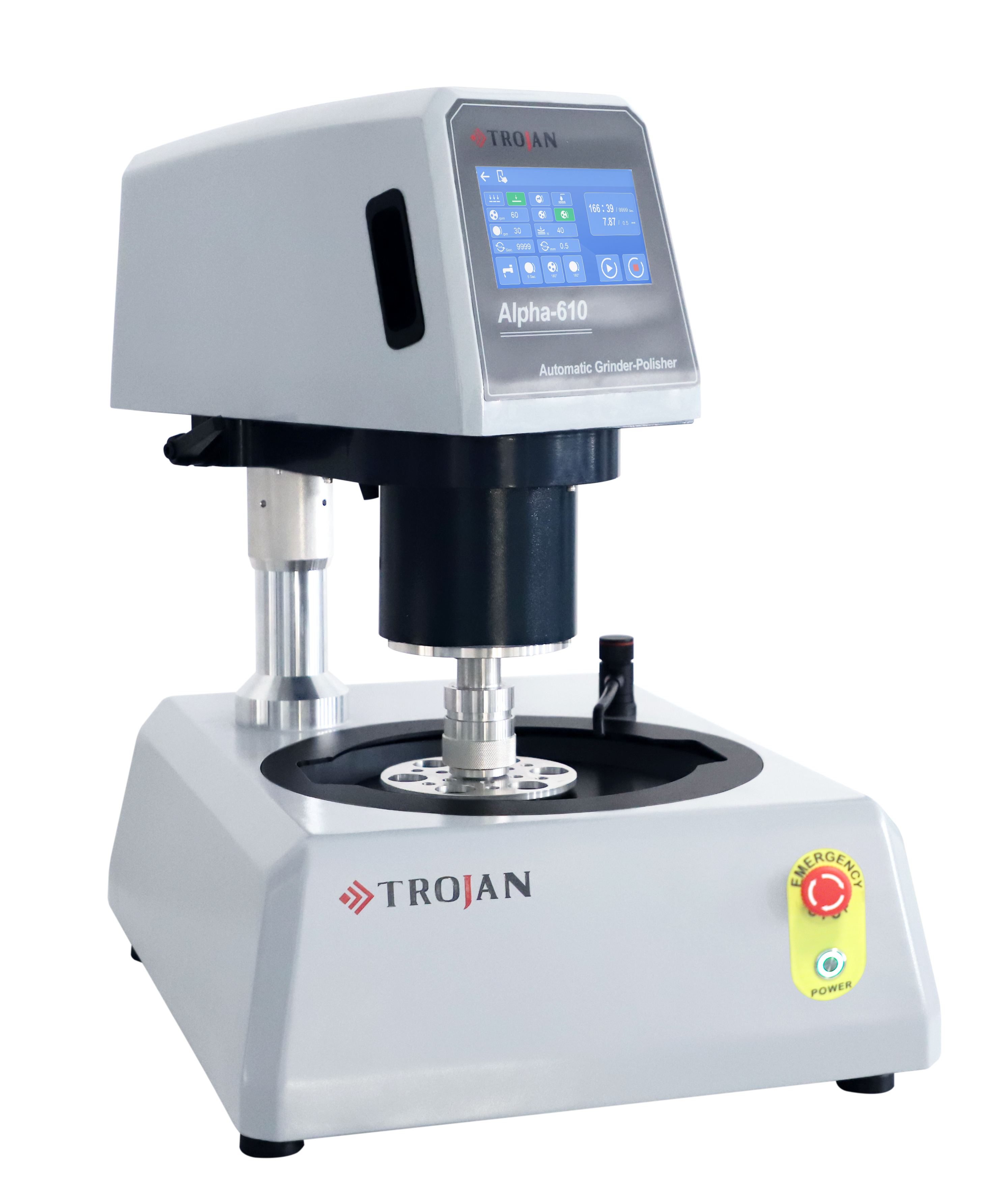

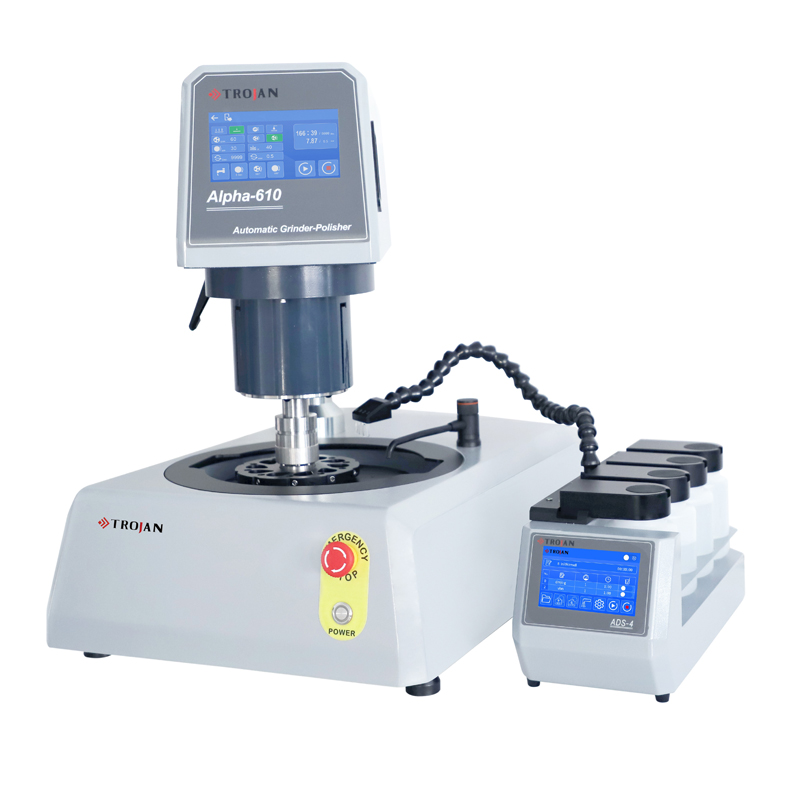

ALPHA-610
|
|
Head
|
Loading force
|
Central loading and Individual loading
|
|
Central pressure
loading
|
20-360N
|
|
Single loading force
|
5-60N
|
|
Power
|
220V, 750W
|
|
Speed
|
20~150rpm
|
|
Direction
|
CCW/CW
|
|
Grinder Polisher
|
Power
|
220V，750W
|
|
Speed
|
50-600rpm
|
|
Wheel Diameter
|
10"/254(8"/203mm,12"/305mm optional)
|
|
Direction
|
CCW
|
|
Quantitative
Function
|
Accuracy
|
±0.1mm
|
|
Grinding capacity
|
0.1mm-10mm
|
|
Dosing System
(optional)
|
Type
|
Peristaltic pump, DC24V, 10W
|
|
Flow
|
Maximum flow rate: 52ml/min
|
|
Amount
|
4
|
|

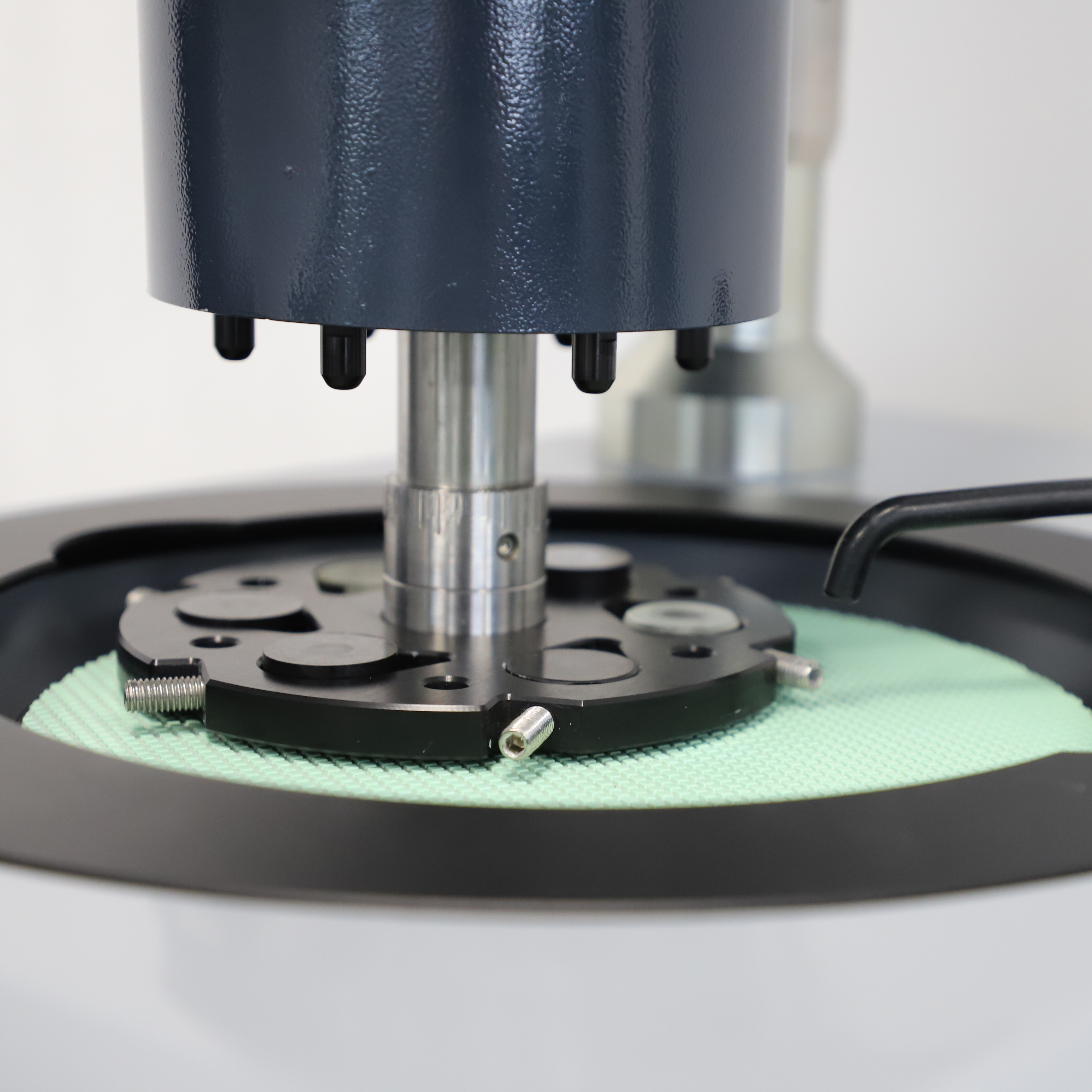

Clamping Disk
|
Single point loading
|
Standard: 6xΦ30mm(6xΦ32mm, 6xΦ40mm, 6xΦ50mm optional)
|
|
Center loading
|
Standard: 8xΦ32mm(10xΦ25.4mm, 6xΦ40mm, 6xΦ50mm optional)
|
|
Operating Environment
|
Temperature
|
-10˚C - 60˚C
|
|
Humdity
|
0-95%RH
|
|
Dimension
|
W*D*H
|
505x740x720mm
|
|
Weight
|
65kg
|
Dosing system：
Various dispensing configurations are available for delivering all types of diamond suspensions. The system ensuresautomatic dosing at fixed intervals and predefined flow rates, enhancing both productivity and preparation consistency.

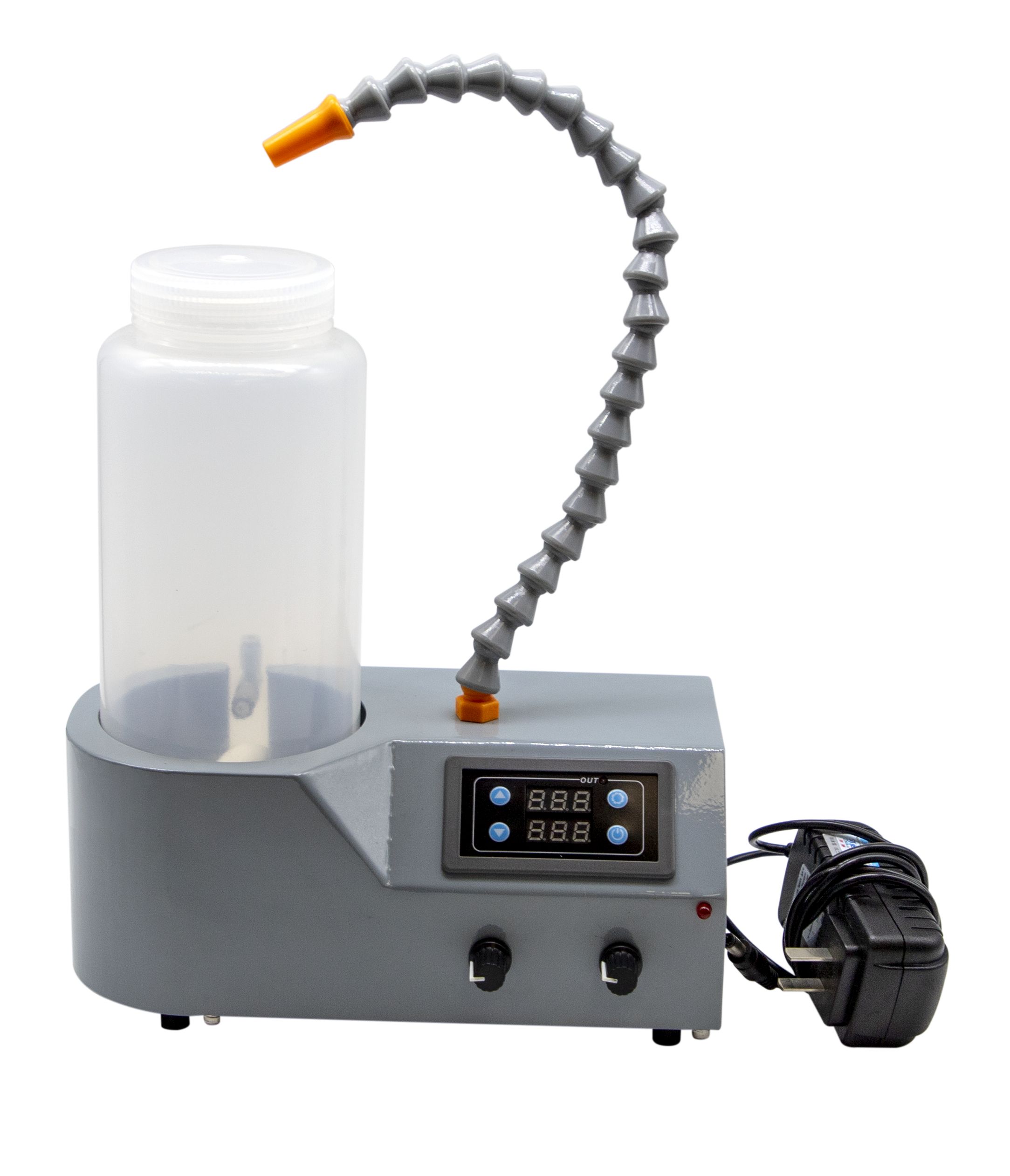

1. ADS-1 Automatic Dosing Unit
Ordering Information：13.20.170

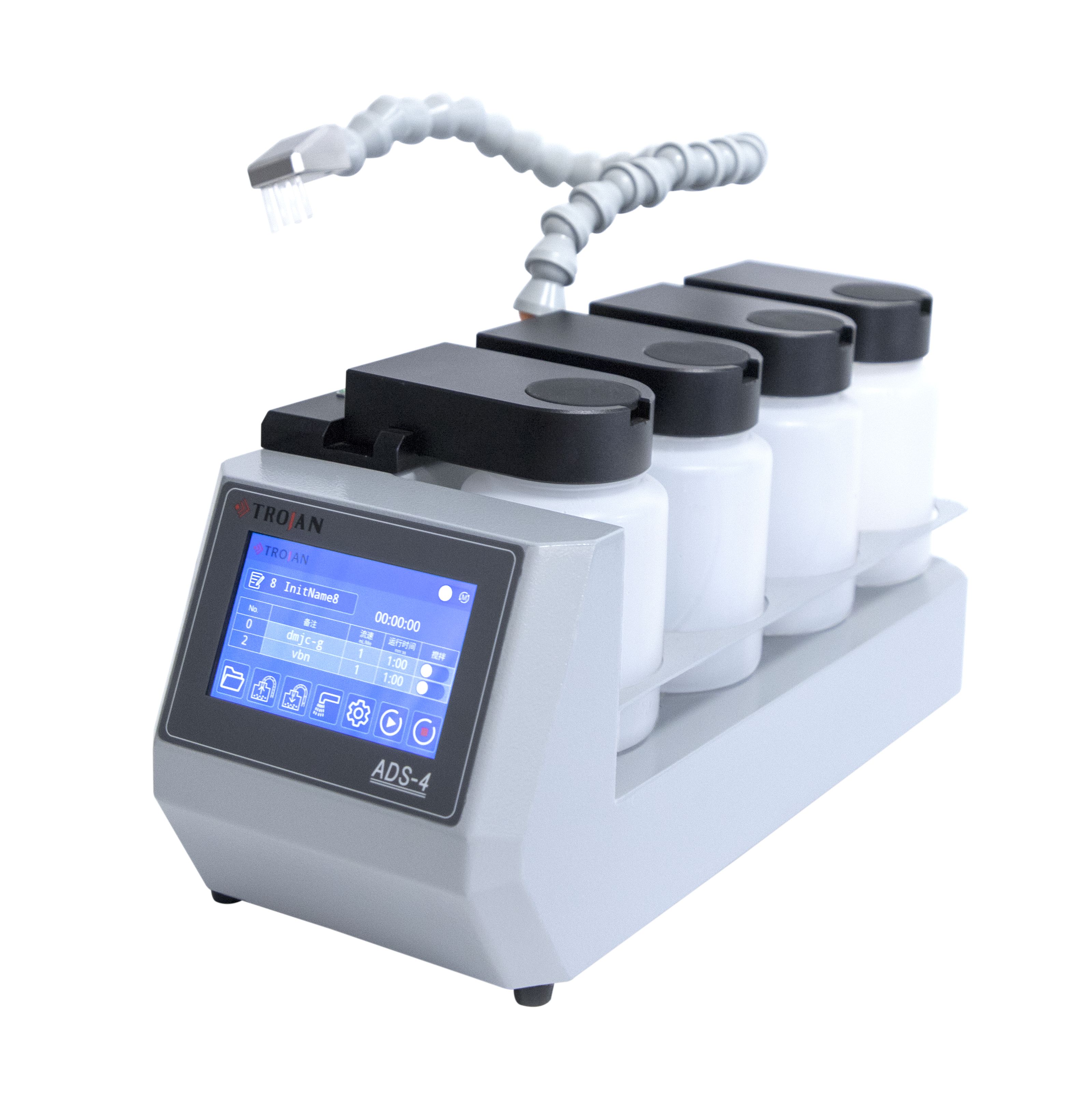

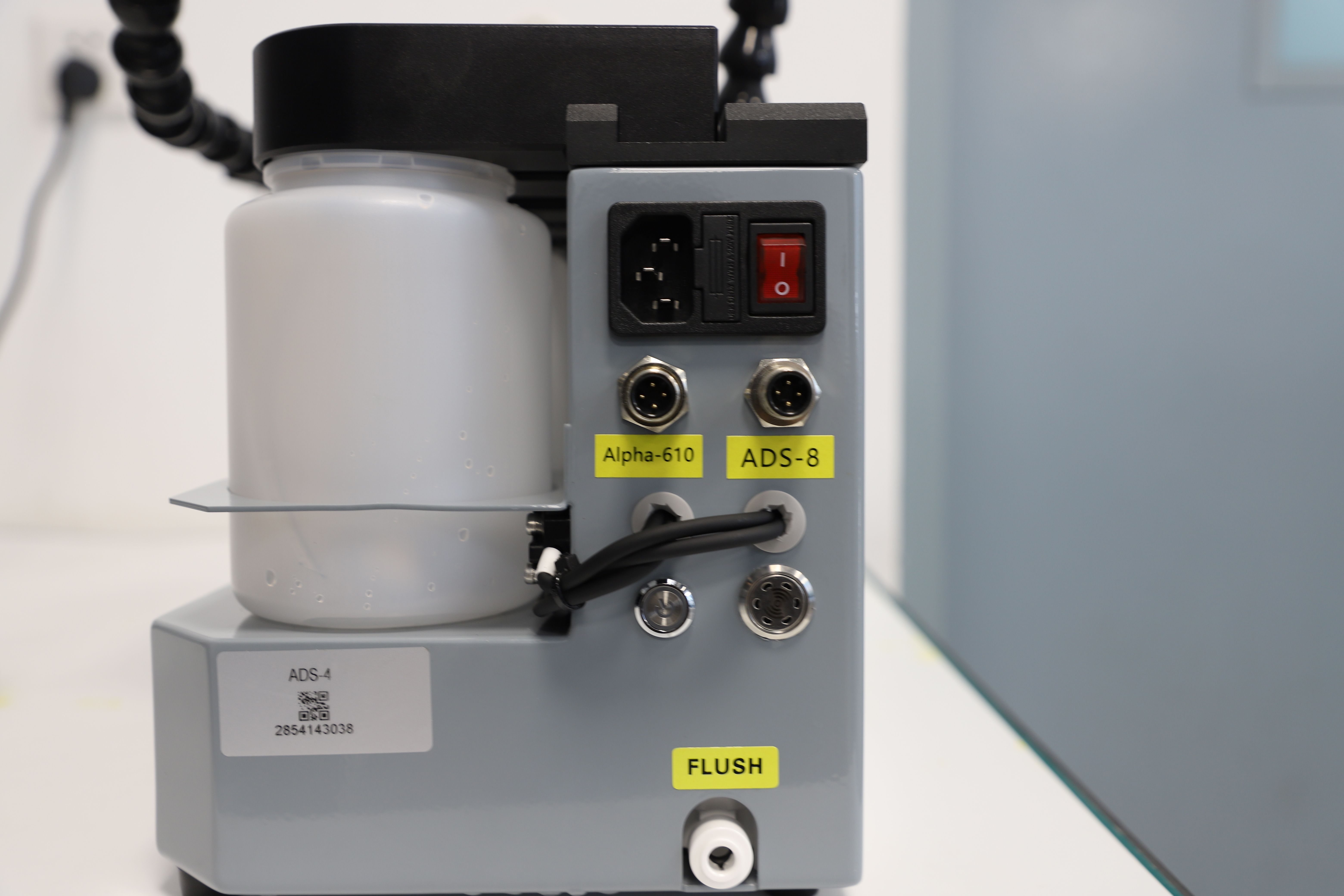

2. ADS-4 Automatic
Ordering Information：13.20.175
3. ADS-4S Automatic
Ordering Information：13.20.176
4. ADS-8 Automatic
Ordering Information：13.20.180
Grinding Accessories
1. Specimen holder & levelling plate-Tear drop
Ordering Information：25.03.550 25.4mm (9)
25.03.570 32mm (9)
25.03.580 40mm (6)
25.03.590 50mm (6)

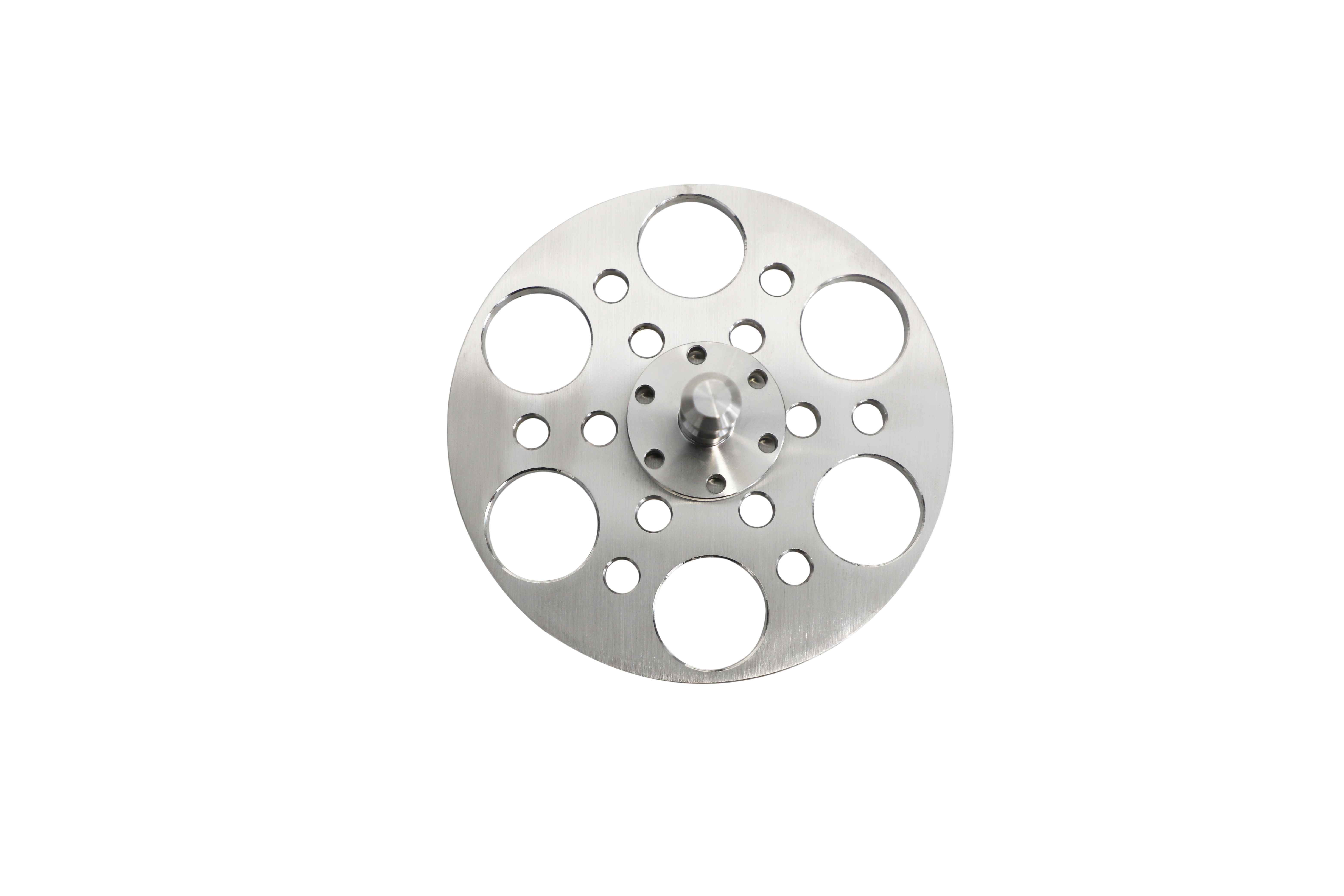

2. Specimen holder for Individual Force
Ordering Information：25.03.500 25.4mm (6)
25.03.510 32mm (6)
25.03.520 40mm (6)
25.03.530 50mm (6)
25.03.540 50mm (6)

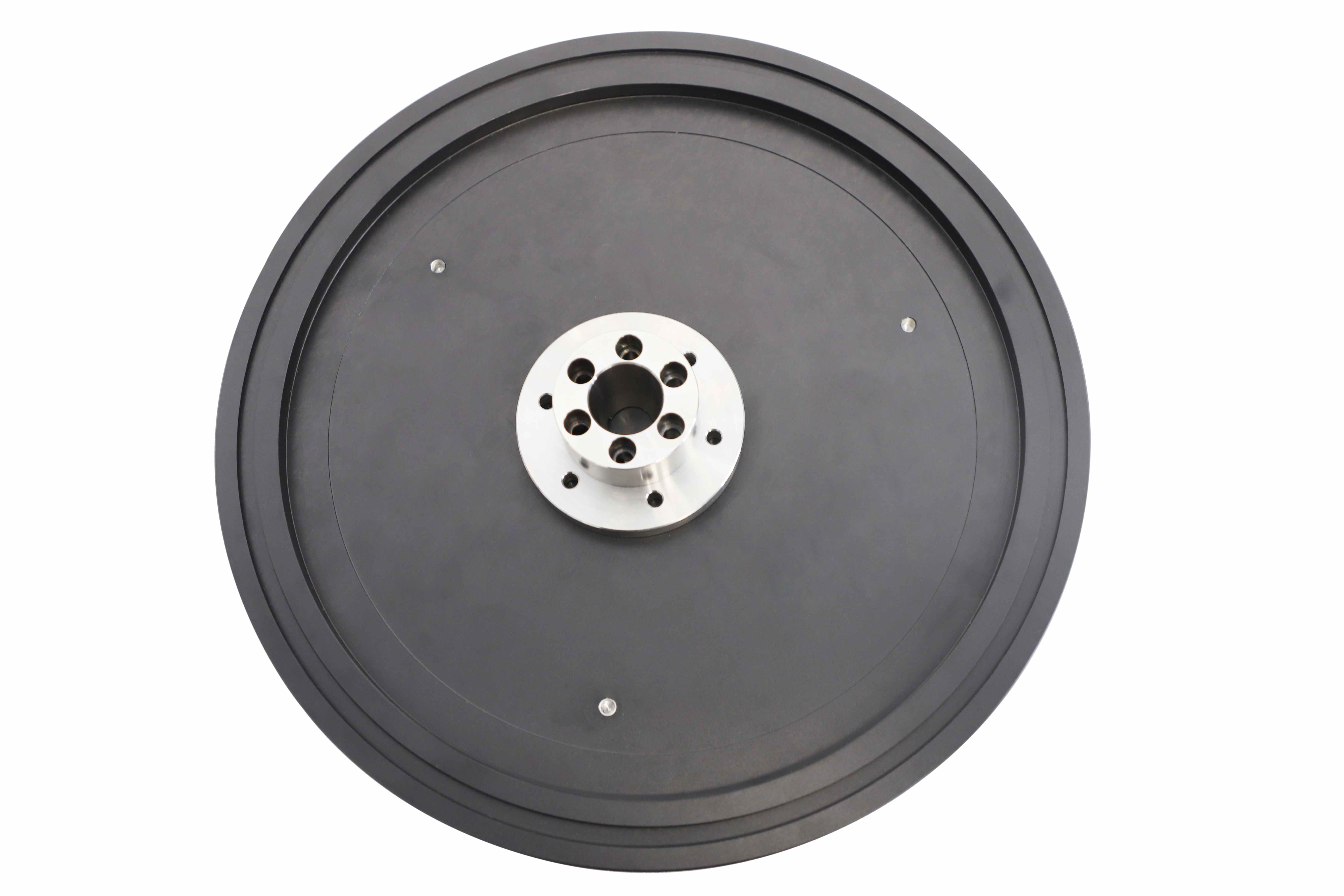

3. Working wheel (taper fit)
Ordering Information：25.03.071 8" (200mm)
25.03.081 10" (250mm)
25.03.091 12" (300mm)

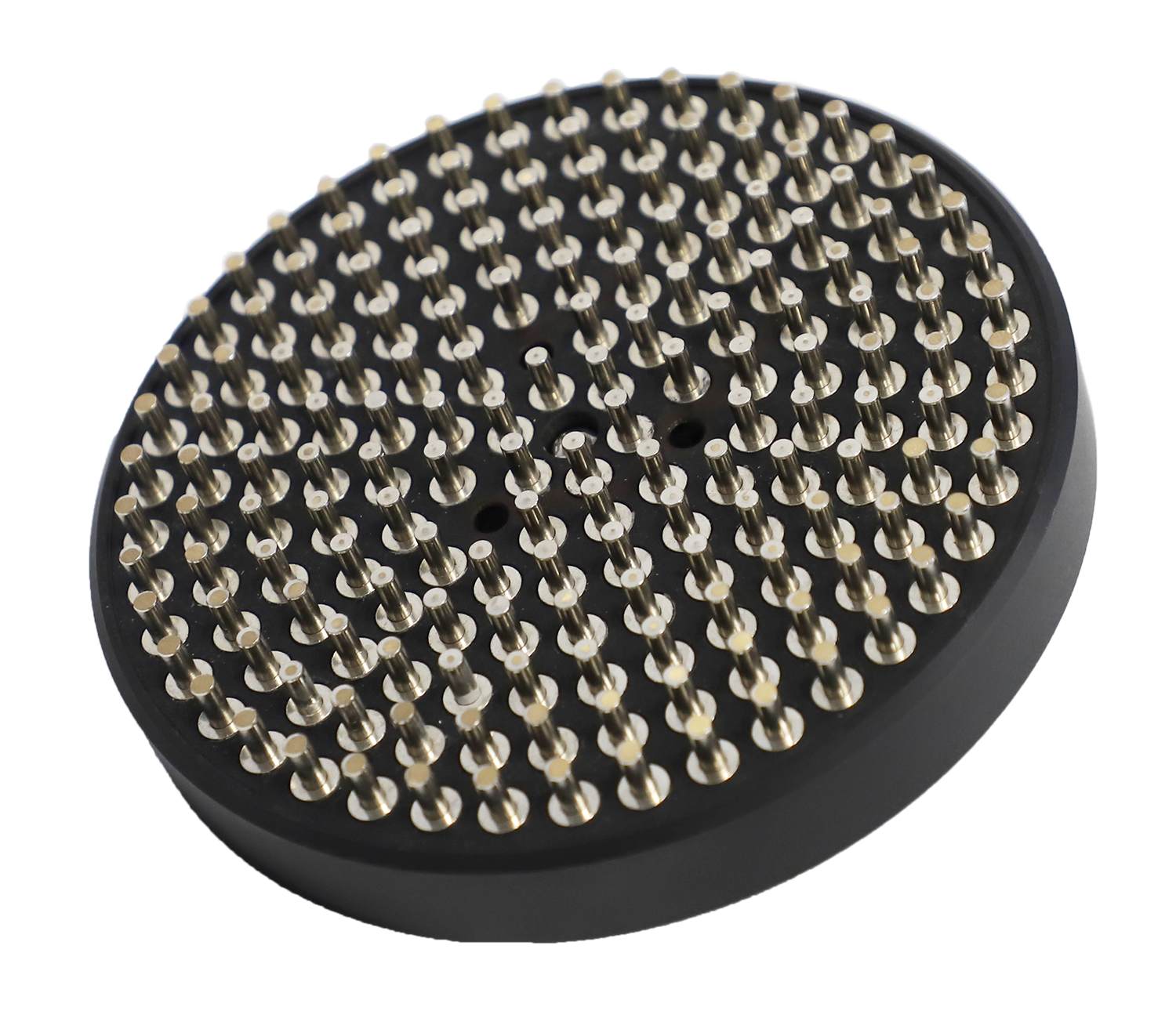

4. Universal fixture
Sample holder diameter: 160mm;
Maximum sample size: 120x30mm;
Maximum sample height: 30mm;
Ordering Information：25.03.800 610-100

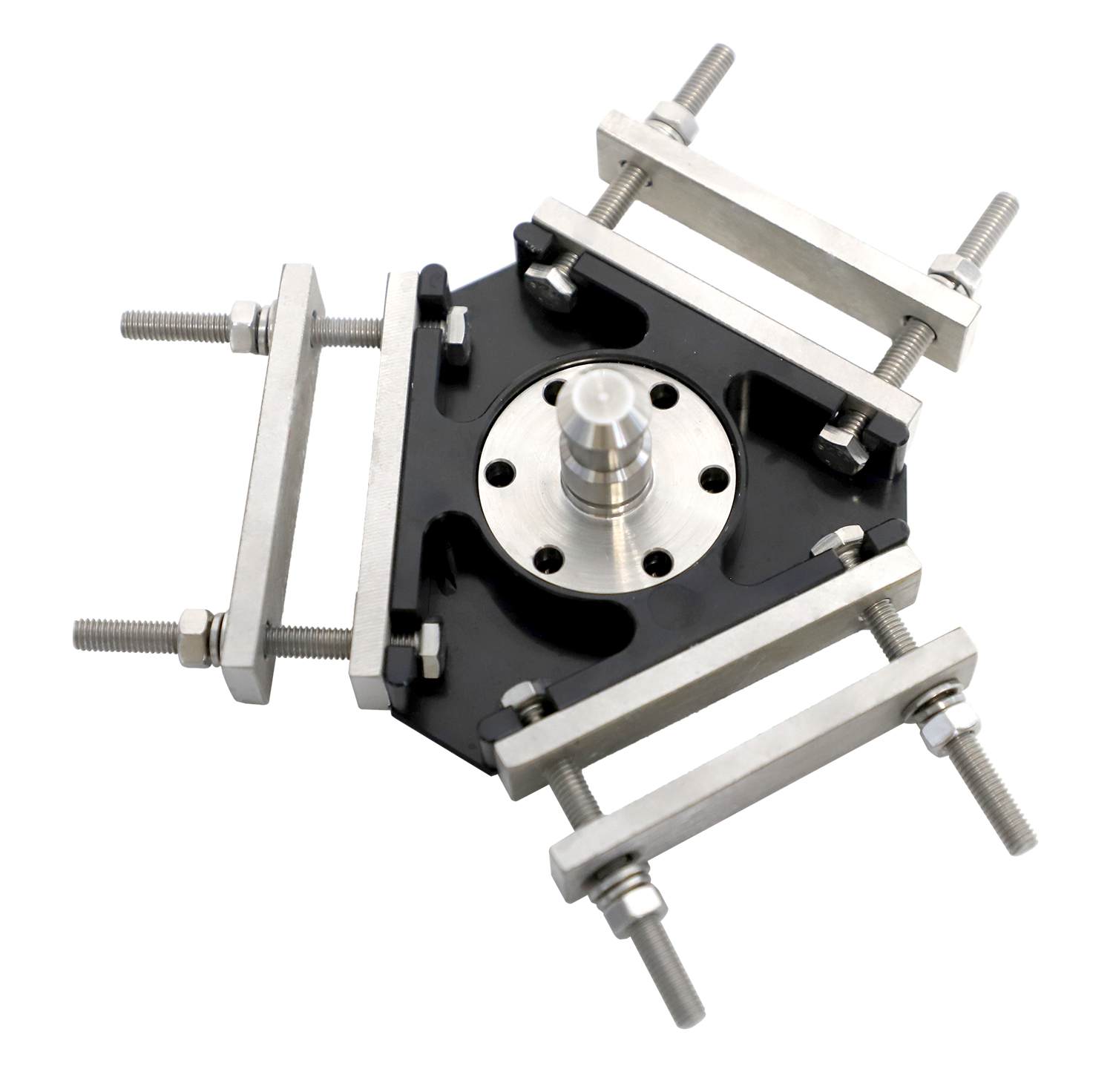

5. Irregular fixture
Sample holder diameter: 160mm;
Maximum sample size: 50x50mm;
Maximum sample height: 50mm;
Ordering Information：25.03.810 610-101
6. Locking fixture
Sample holder diameter: 160mm;
Maximum sample size: 120x30mm;
Maximum sample height: 30mm;
Ordering Information：25.03.820 610-102

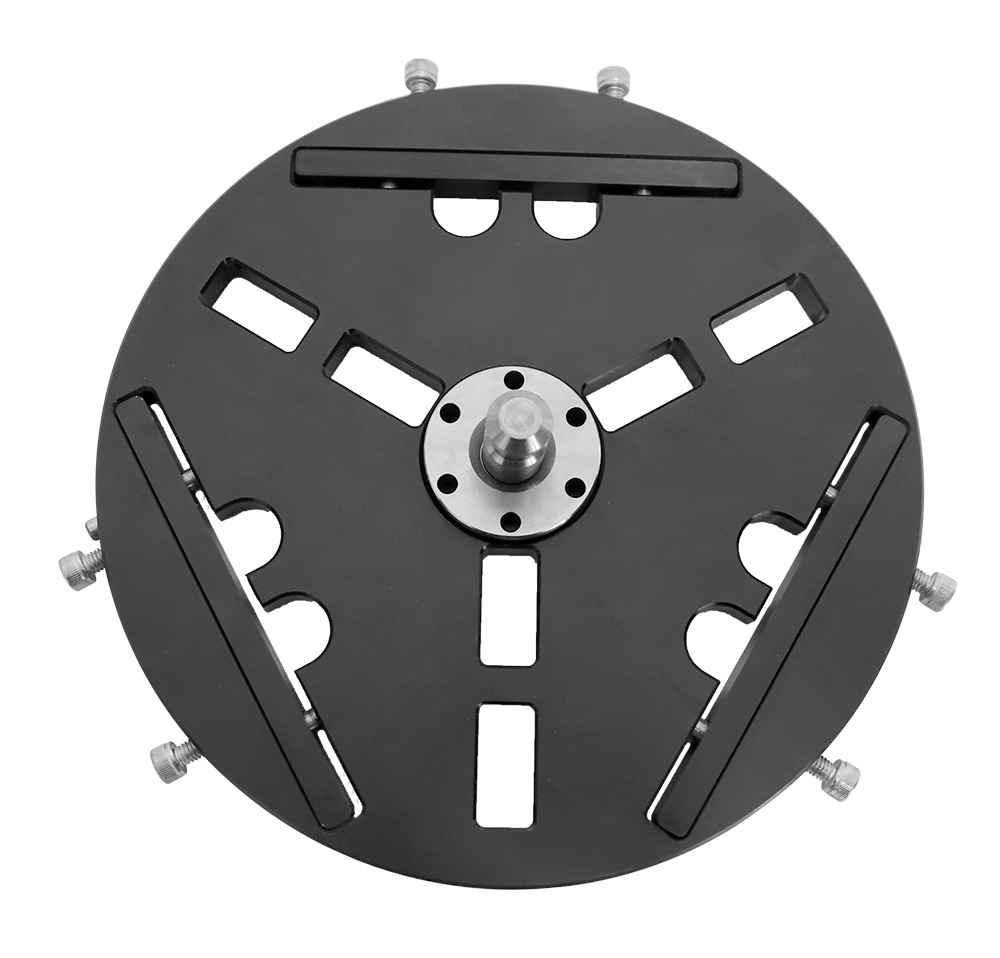

7. Side locking fixture
Sample holder diameter: 160mm or 180mm;
Maximum sample size: 50x30mm;
Maximum sample height: 5mm;
Ordering Information：25.03.830 610-103
25.03.840 610-104

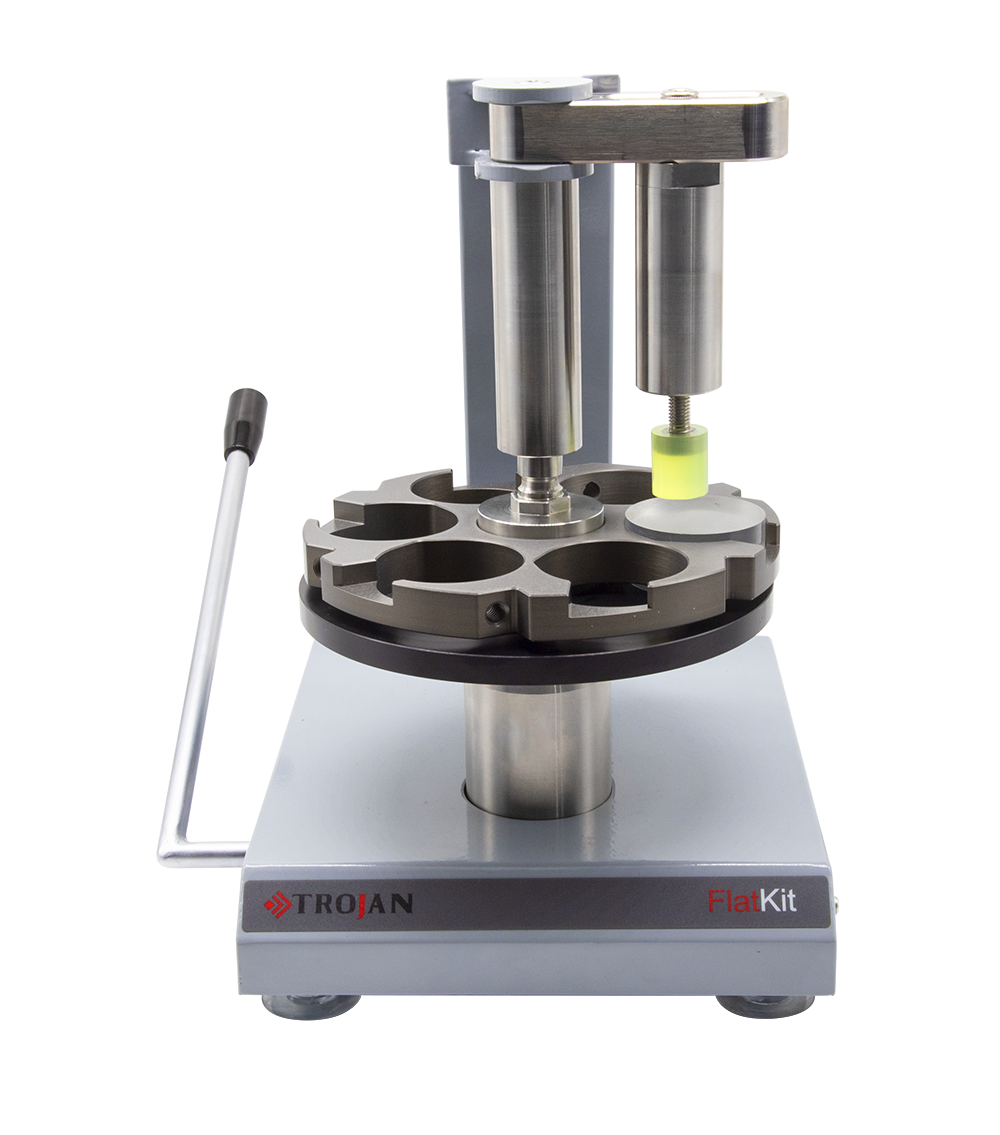

8. FLAT Levelling device
Sample holder diameter: 160mm or 180mm;
Sample diameter: 25-50mm;
Maximum sample height: 40mm;
Sample exposure height: 3 or 5mm;
Ordering Information：15.02.004 FLAT-1
9. Pneumatic flattening device
Sample holder diameter: 160mm or 180mm;
Sample diameter: 25-50mm;
Maximum sample height: 40mm;
Sample exposure height: 3 or 6mm;
Ordering Information：15.02.010 SF-1

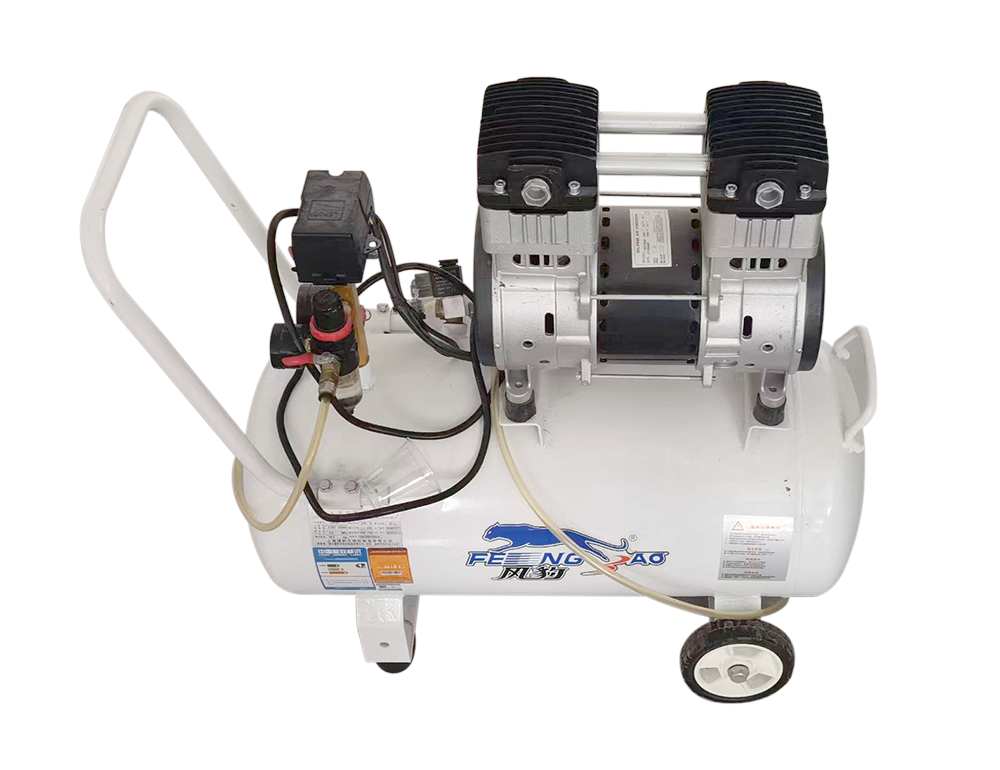

10. Air Compressor
Capacity: 24L
Exhaust Pressure: 0.8Mpa
Ordering Information：13.90.350

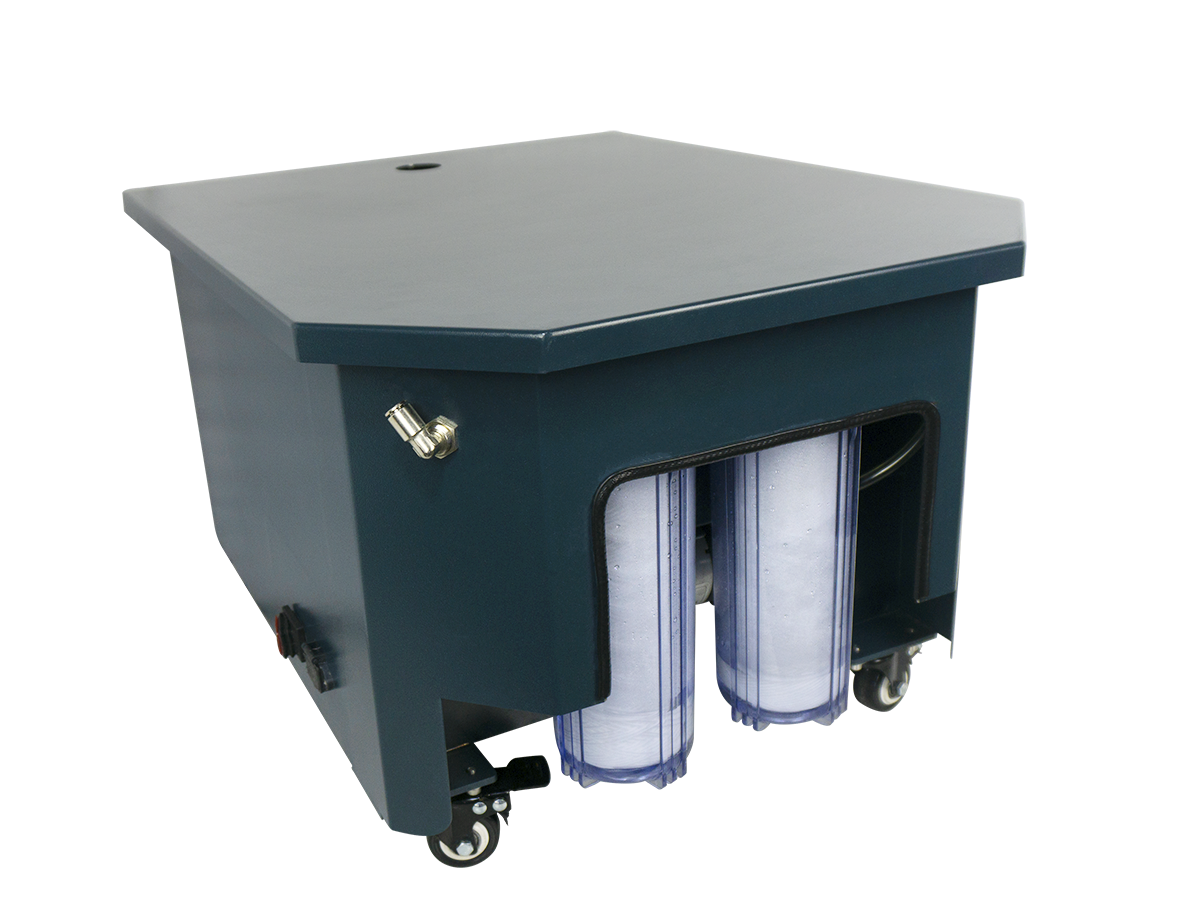

11. Recirculating water tank
Capacity: 45L
Exhaust Pressure: 5L/Min
Ordering Information：25.01.040 Filtank60
