Diamond/CBN ultra-thin precision cut off wheels feature an ultra-thin design, high precision, and long service life. They are widely used in quality control, falure analysis, and fundamental material research across industries such as crystals, ceramics, semiconductors,integrated circuits, printed circuit boards (PCB), glass, and alloys. Diamond cut off wheels are typically categorized into three types: resin-bonded, metal-bonded, and electroplated diamond.

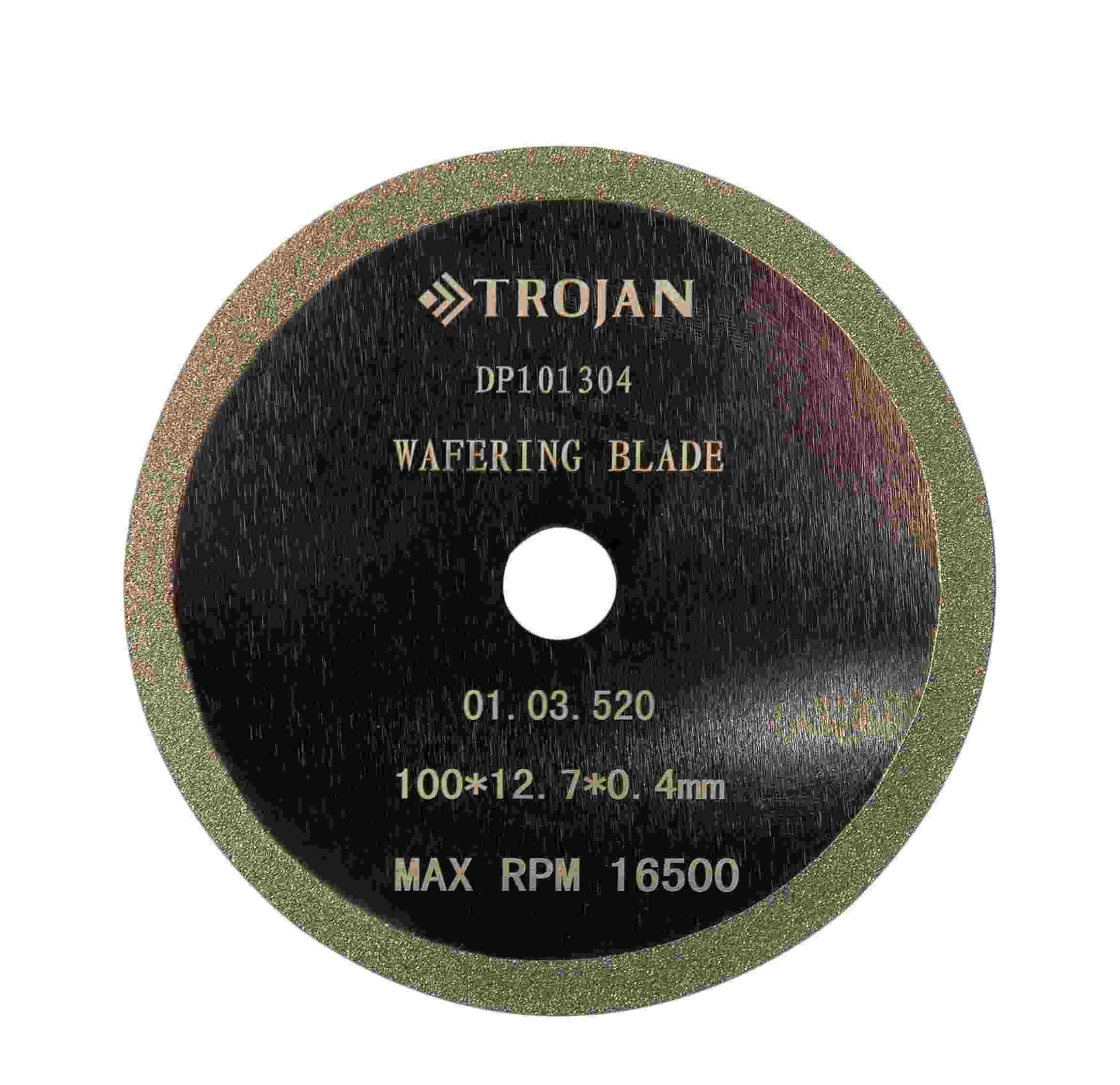

DP Electroplated Diamond Cut Off Wheels
Material: Metal base with nickel-plated diamond edge.
Application: Suitable for cutting PCB, plastic, fiber reinforced resin, and soft non-ferrous metals.
| Order No. | Code | Spec.(mm) | Package |
| 01.03.520 | DP101304 | 100*12.7*0.4mm | 1 pc |
| 01.03.525 | DP131304 | 125*12.7*0.4mm | 1 pc |
| 01.03.530 | DP151305 | 150*12.7*0.5mm | 1 pc |
| 01.03.541 | DP181308 | 180*12.7*0.8mm | 1 pc |
| 01.03.551 | DP202210 | 200*22.0*1.0mm | 1 pc |
| 01.03.560 | DP253215 | 250*32.0*1.5mm | 1 pc |
| 01.03.570 | DP303220 | 300*32.0*2.0mm | 1 pc |

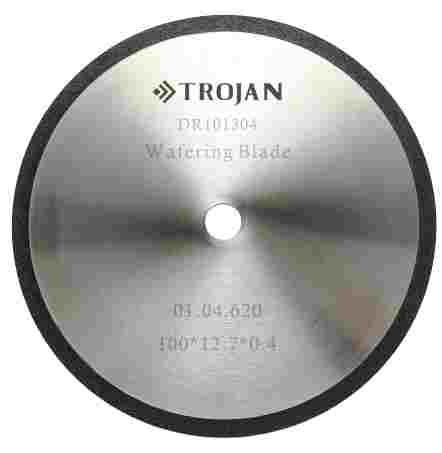

DR Resin-Bonded Diamond Cut Off Wheels
Application: Suitable for hardand brittle materials, including ceramics, composites, carbides, and rare metals.
| Order No. | Code | Spec.(mm) | Package |
| 01.04.620 | DR101304 | 100*12.7*0.4mm | 1 pc |
| 01.04.625 | DR131304 | 125*12.7*0.4mm | 1 pc |
| 01.04.630 | DR151305 | 150*12.7*0.5mm | 1 pc |
| 01.04.645 | DR181308 | 180*12.7*0.8mm | 1 pc |
| 01.04.656 | DR202210 | 200*22.0*1.0mm | 1 pc |
| 01.04.660 | DR253215 | 250*32.0*1.5mm | 1 pc |
| 01.04.670 | DR303220 | 300*32.0*2.0mm | 1 pc |

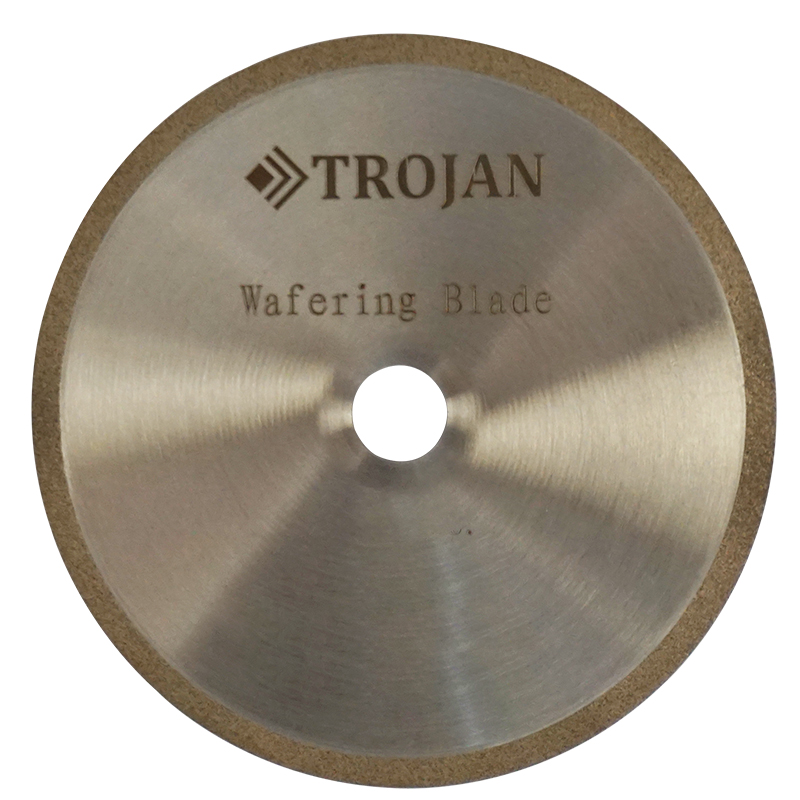

DM Metal-Bonded Diamond Cut Off Wheels
Application: Suitable for hard and brittle materials such as glass, ceramics, and minerals.
| Order No. | Code | Spec.(mm) | Package |
| 01.05.720 | DM101304 | 100*12.7*0.4mm | 1 pc |
| 01.05.725 | DM131304 | 125*12.7*0.4mm | 1 pc |
| 01.05.730 | DM151305 | 150*12.7*0.5mm | 1 pc |
| 01.05.741 | DM181308 | 180*12.7*0.8mm | 1 pc |
| 01.05.748 | DM202210 | 200*22.0*1.0mm | 1 pc |
| 01.05.760 | DM253215 | 250*32.0*1.5mm | 1 pc |
| 01.05.770 | DM303220 | 300*32.0*2.0mm | 1 pc |
CBN-M BoronNitride Cut Off Wheels
Application: Designed for precision cutting of hard steels, iron, Co-Ni alloys, and lead-based alloys-ideal for lowspeed sectioning.
| Order No. | Code | Spec.(mm) | Package |
| 01.10.920 | CBN-M101304 | 100*12.7*0.4mm | 1 pc |
| 01.10.925 | CBN-M131304 | 125*12.7*0.4mm | 1 pc |
| 01.10.930 | CBN-M151305 | 150*12.7*0.5mm | 1 pc |
| 01.10.935 | CBN-M181308 | 180*12.7*0.8mm | 1 pc |
| 01.10.950 | CBN-M202210 | 200*22.0*1.0mm | 1 pc |
| 01.10.960 | CBN-M253215 | 250*32.0*1.5mm | 1 pc |
| 01.10.970 | CBN-M303220 | 300*32.0*2.0mm | 1 pc |
Basing on China, TROJAN has a strong focus on international sales, for now ,TROJAN has sold Diamond/CBN Cut off Wheels to more than 40 countries, such as Europe, U.S.A, Korea and Southeast Asia.
