Alpha-611 Automatic Grinder and Polisher

Alpha-611 Automatic Grinder and Polisher

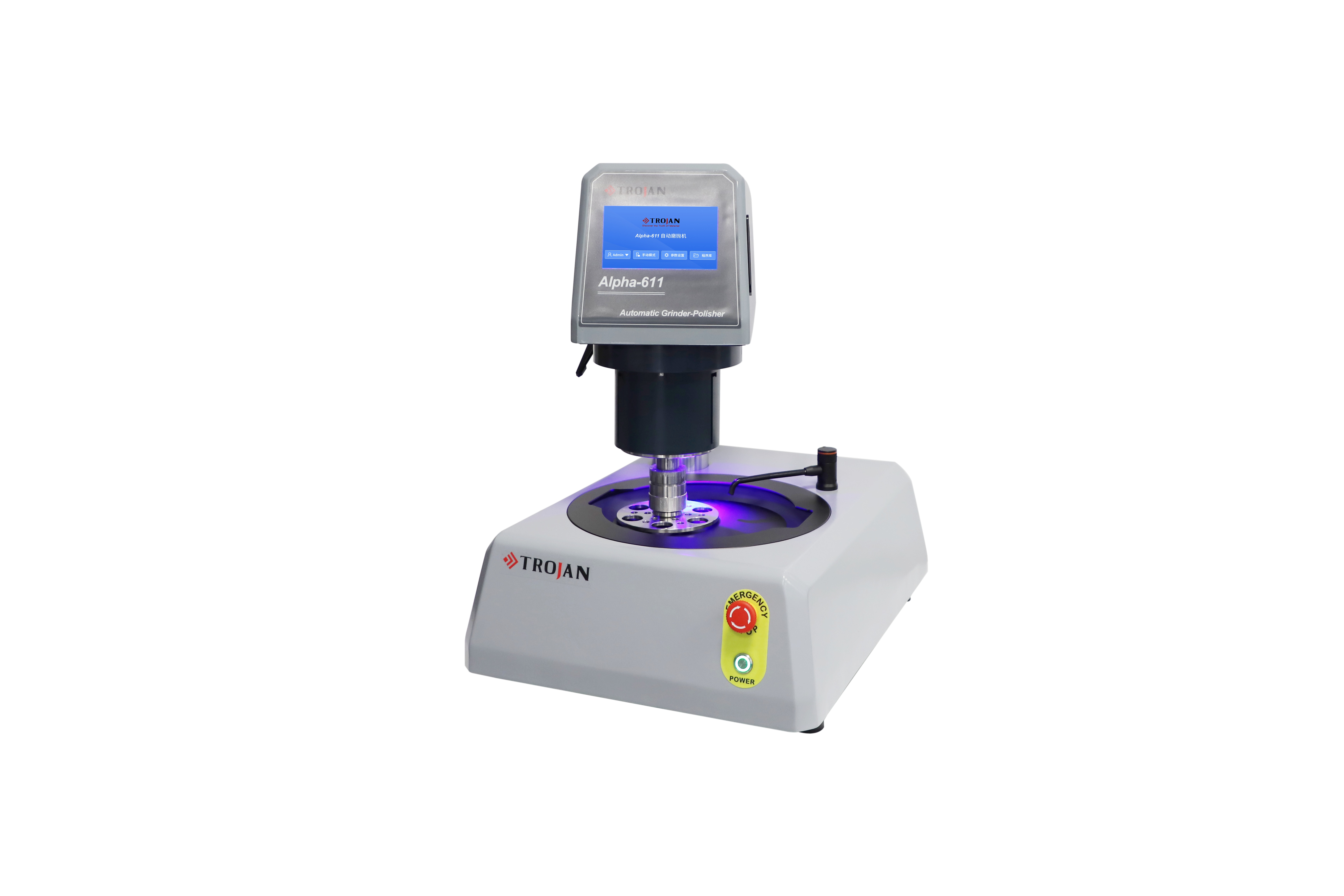

The Alpha-611 is a single platen automatic grinder polisher. The grinding head and the grinding platen are driven by twoindependent motors, suitable for grinding platen with a diameter of 200mm -300mm. The machine has two types of pressurization: center loading and individual loading, and can be equipped with an optional 4 sets of peristaltic pump dripping system. Twenty sets of commonly used grinding processes can be set and stored in the system, enabling highly repeatable test results easily and quickly.

E-mail: [email protected]
Download Contact Us Send E-mail
  • Alpha-611 Automatic Grinder and Polisher
  • Alpha-611 Automatic Grinder and Polisher
  • Alpha-611 Automatic Grinder and Polisher

Product Details

Features

1. Cast aluminum shell, SMC standard loading cylinder, designed to be more reliable and durable;

2. 7-inch touch screen panel, the interface is simple and easy to understand;

3. Adopt two-hand protection button to control the lifting and lowering of the clamping platen;

4. Two pressurization modes: Central Pressure Loading and Individual Pressure Loading;

5. Dripping system with 4 sets of peristaltic pumps is available;

6. Built-in 20 groups of common grinding and polishing process parameters and user-defined parameters can also be stored;

7. Large diameter side drainage system, not easy to block and drain quickly;

8. Pluggable faucet facilitates cleaning and maintenance of the disk;

9. Built-in automatic temperature-sensing cooling fan to reduce failure rate and enhance working life.


Technical Parameters



ALPHA-611

Head
Loading force
Central loading and Individual loading
Central pressure
loading
20-360N
Single loading force

5-60N

Power
220V, 750W

Speed

20~150rpm

Direction

CCW/CW
Grinding disc

Power

220V, 750W

Speed
50-600rpm

Wheel Diameter

10"/254mm (8"/203mm, 12"/305mm optional)

Direction

CCW
Dosing System
(optional)
Type
Peristaltic pump, DC24V, 10W
Flow



Maximum flow rate: 52ml/min

Amount

 4
Clamping Disk
Single point loading
Standard: 6xΦ30mm(6xΦ25mm, 6xΦ40mm, 6xΦ50mm optional)
Center loading

 Standard: 8xΦ32mm(10xΦ25.4mm, 6xΦ40mm, 6xΦ50mm optional)

Operating Environment

Temperature

-10˚C - 60˚C

Humdity

0-95%RH

Dimension

W*D*H
740x505x720mm

Weight

65kg

Dosing system

Various dispensing confiaurations are available for delivering all types of diamond suspensions. The system ensuresautomatic dosing at fixed intervals and predefined flow rates, enhancing both productivity and preparation consistency.

1. ADS-1 Automatic Dosing Unit

Ordering Information：13.20.170

2. ADS-4 Automatic Dosing Unit

Ordering Information：13.20.175

3. ADS-4S Automatic Dosing Unit

Ordering Information：13.20.176

4. ADS-8 Automatic Dosing Unit

Ordering Information：13.20.180

Grinding Accessories

1. Specimen holder & levelling plate-Tear drop

Ordering Information：

25.03.550        25.4mm(9)

25.03.570        32mm(9)

25.03.580        40mm(6)

25.03.590        50mm(6)

2. Specimen holder for individual Force

Ordering Information：

25.03.500        25.4mm(9)

25.03.510        30mm(6)

25.03.520        32mm(6)

25.03.530        40mm(6)

25.03.540        50mm(6)

3. Working wheel (taper fit)

Ordering Information：

25.03.071       8"(200mm)

25.03.081        10"(250mm)

25.03.091        12"(300mm)

4. Universal fixture

Sample holder diameter：160mm

Maximum sample size：120x30mm

Maximum sample height：30mm

Ordering Information：25.03.800        610-100

5. Irregular fixture

Sample holder diameter：160mm

Maximum sample size：50x50mm

Maximum sample height：50mm

Ordering Information：25.03.810        610-101

6. Locking fixture

Sample holder diameter：160mm

Maximum sample size：120x30mm

Maximum sample height：30mm

Ordering Information：25.03.820        610-102

7. Side locking fixture

Sample holder diameter：160mm or 180mm

Maximum sample size：50x30mm

Maximum sample height：5mm

Ordering Information：

25.03.830        610-103

25.03.840        610-104

8. FLAT Levelling device

Sample holder diameter：160mm or 180mm

Sample diameter：25-50mm

Maximum sample height：40mm

Sample exposure height：3 or 5mm

Ordering Information：15.02.004        FLAT-1

9. Pneumatic flattening device

Sample holder diameter：160mm or 180mm

Sample diameter：25-50mm

Maximum sample height：40mm

Sample exposure height：3 or 6mm

Ordering Information：15.02.010        SF-1

10. Air Compressor

Capacity：24L

Exhaust Pressure：0.8Mpa

Ordering Information：13.90.350

11. Recirculating water tank

Capacity：45L

Exhaust Pressure：5L/Min

Ordering Information：25.01.040        Filtank60
