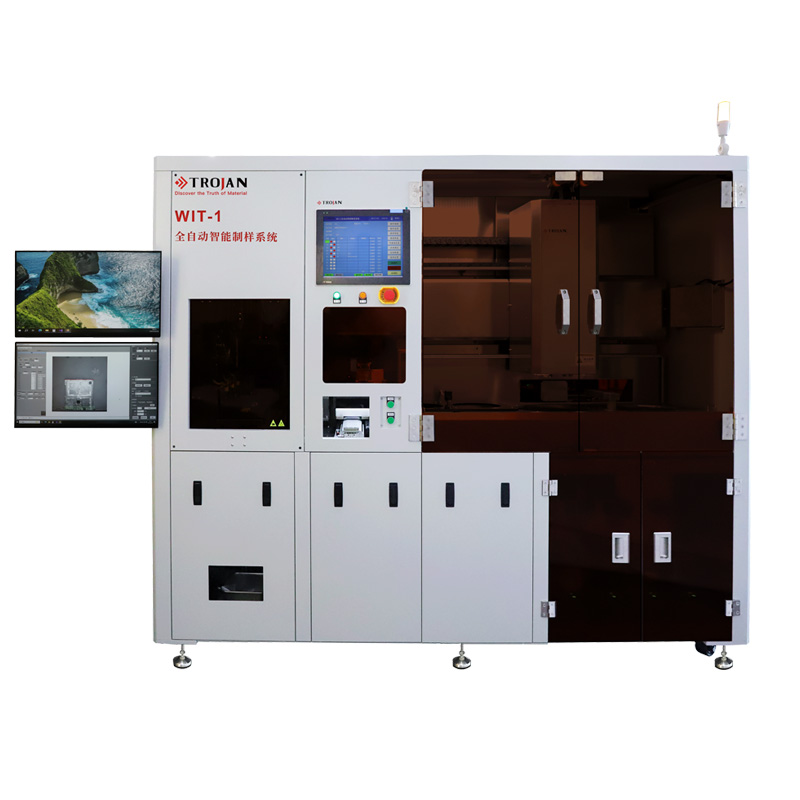

WIT-1 Fully Automatic Intelligent Sample Preparation System

The WIT-1 fully automatic intelligent sample preparation system is specifically developed for cross-sectional slice detection in industries such as semiconductors and PCB... It can be used for precise positioning detection and analysis of PCB holes, copper,solder joints, and tin balls. It uses a high-definition CCD camera to determine the grinding position, enabling it to automatically complete processes such as rough grinding, fine grinding, fine polishing, and cleaning.

Features：

1）High-precision CCD lens for sample calibration offers high accuracy and a large field of view, achieving a grinding precision of ±10μm.

2）Multiple grinding lines can be calibrated on a single sample at once. After completing one grind, it automatically proceeds to the next without requiring recalibration.

3）Automatically adjusts the grinding angle to correct samples that are tilted during mounting.

4）Can hold up to 3 samples simultaneously for grinding and polishing.

5）The pressure and speed applied to the sample are controllable, preventing cracking or breaking due to excessive pressure.

6）Equipped with laser marking/coding for sample traceability.

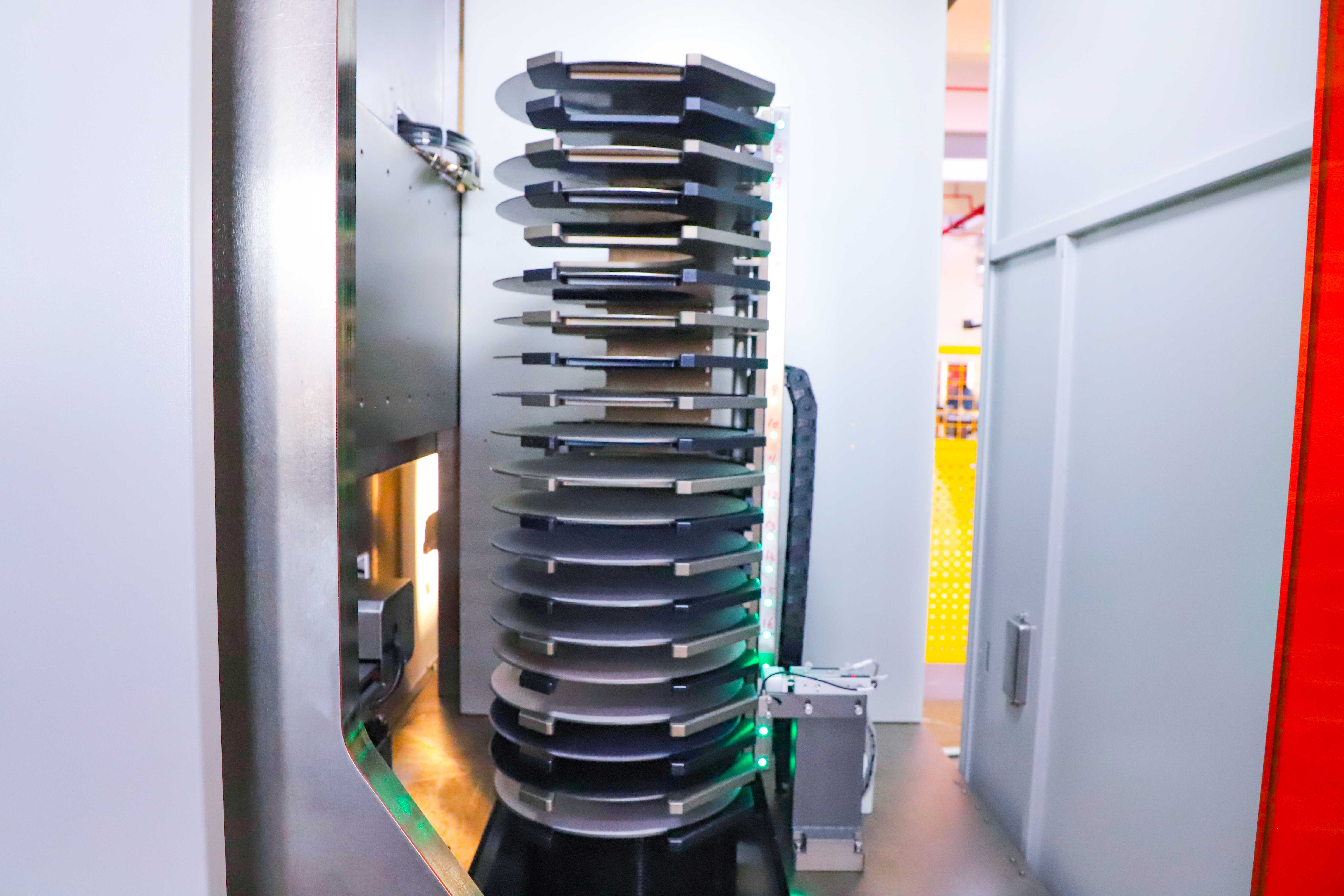

7）Dual workstations with automatic grinding disc changeover; can accommodate up to 20 grinding discs.

8）Capable of photographing the ground/polished surface.

9）Configured with 4 sets of different polishing fluids, 2 of which have mechanical stirring; all 4 sets feature liquid level alarms.

10）Includes a cleaning station with ultrasonic cleaning, water rinsing, and air blow-drying.

11）Processed samples are placed face-up and arranged orderly in the recovery tray to avoid scratching the prepared surface.

Technical Specifications

WIT-1
Input	Power Supply	AC 220V/50 Hz + Ground, Total Power: 7Kw, Rated Power: 2Kw
	Compressed air	0.6~0.7MPa， Hose OD=Φ10mm
	External water connection	<0.3Mpa，Pipe OD=Φ10mm
	Sample Mounting Box	Size 39×47×12mm / 302712mm, Max Quantity 21
Output	Drainage	Drain Pipe OD 32mm
Output	Discharge	Samples discharged face-up and orderly arranged.
Safety	Emergency Stop	Press to cut control circuit and power supply.
	Safety Door Lock	Safety relay and safety door lock, PLD safety protection level.
	Three-color Alarm Light	Yes
Control	PLC Control	Main Screen: 15-inch / Auxiliary Screen: 7-inch
Control	computer screen	Dual display , 24-inch
Alignment System	CCD Camera	25 Megapixels
	Photo Field of View	35x35mm
	Laser Marking/Reading	Yes
	Max Number of Lines	30
	Line Drawing Method	Specified distance translation based on feature lines.

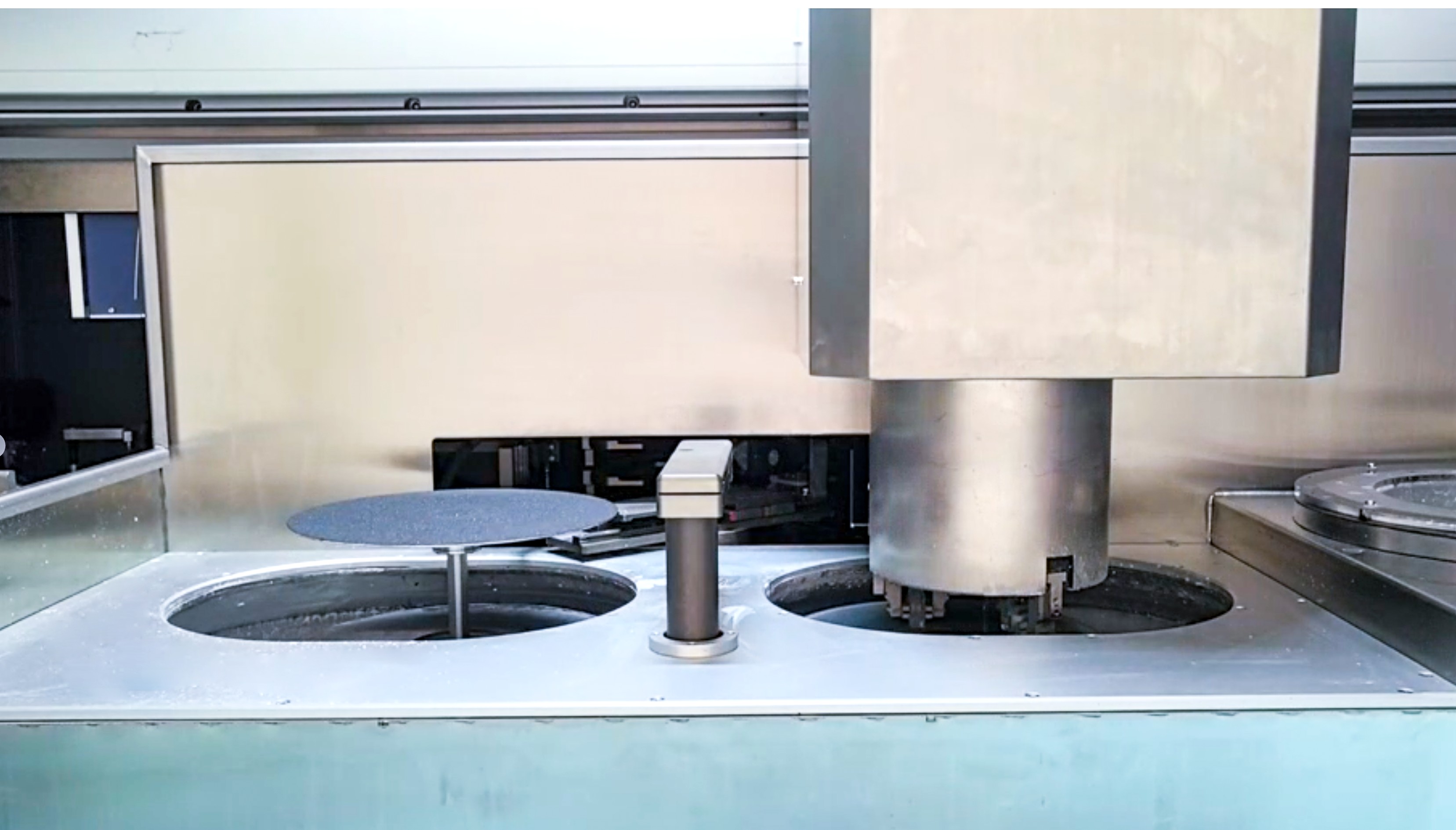

Grinding/Polishing Station	Grinding Stations	2
	Grinding Disc Diameter	Φ254mm
	Rotation Speed	100-1000rpm
	Motor Power	1Kw
Moving Grinding Head	Number of Samples Held	3
	Motor Power	0.4Kw
	Rotation Speed	0-360° reciprocating swing
	Pressure	5-100 N
Dispensing System	Dispensing Groups	4 groups X 1.8L each
	Flow Rate	0-50 ml/min
	Stirring	2 groups, mechanical stirring
	Liquid Level Alert	Yes
Disc Storage	Number of Discs	20
Disc Storage	Disc Life Alert	Based on usage count or grinding force
Cleaning	Cleaning Methods	Water rinse, ultrasonic, high-speed disc spin-dry
Cleaning	Drying Station	Independent air blow-dry
Sample Preparation Process Library	Program Groups	30
	Max Steps per Program	10
	Single Step End Condition	Remaining grind amount [min 0.001mm], Grind amount [min 0.001mm], or Grinding time
	Single Step Grinding Mode	By pressure [0-100N] or speed [min 0.001mm/s]
Dimensions	Screen & Light folded	2400x1320x2000mm
Weight		1500kg
