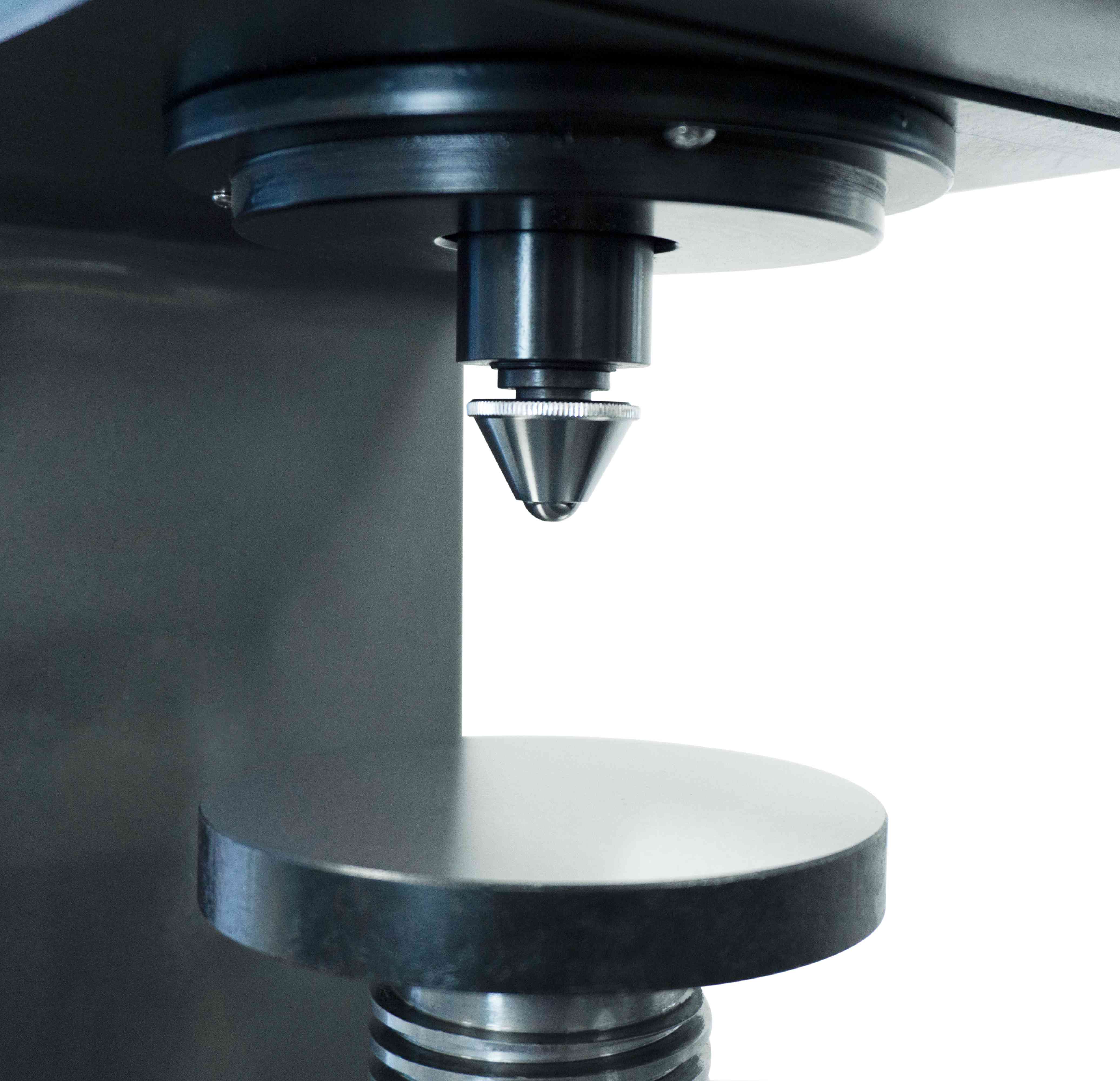

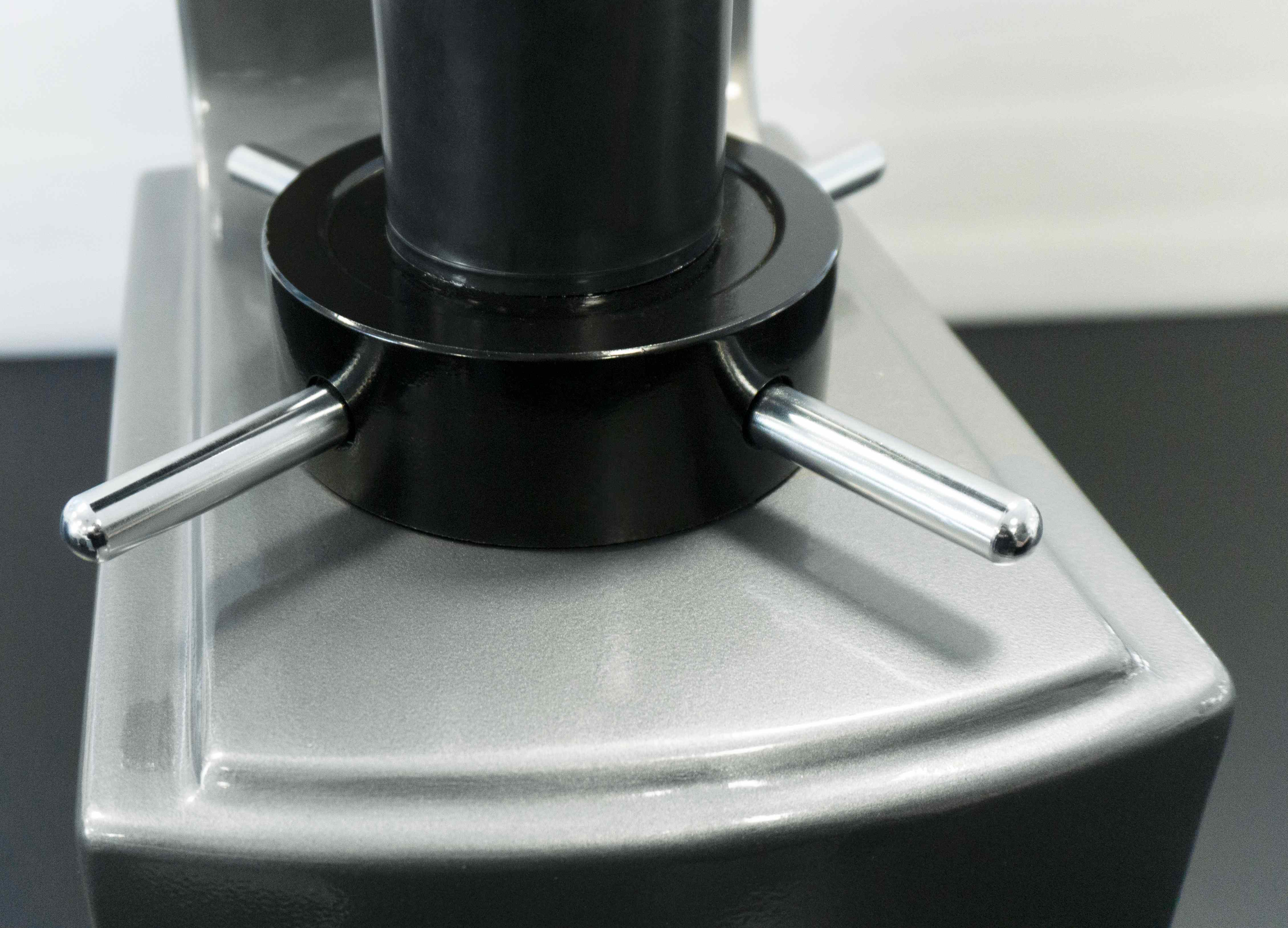

HB-3000C Electronic Brinell hardness tester

HB-3000C Electronic Brinell hardness tester

The electronic Brinell hardness test is mainly used to determine the hardness of cast iron, steel, non-ferrous metals and soft alloys, and it can also be used to determine the hardness of some non-metallic materials such as hard plastics and bakelite. The hardness tester removes the loading weight, adopts an electronic automatic loading system, has a ten-level test force, has a wider test range and higher accuracy. It is suitable for factories, workshops, laboratories, universities and research institutions. The test is mainly used to determine the hardness of cast iron, steel, non-ferrous metals and soft alloys.
Eliminates the loading weights and adopts an electronic automatic loading system, With ten-level test force, the test range is wider and the accuracy is higher.

E-mail: [email protected]
Download Contact Us Send E-mail
  • HB-3000C Electronic Brinell hardness tester
  • HB-3000C Electronic Brinell hardness tester

Product Details

Main Technical Parameter:

Model HB-3000C
Brinell hardness scale HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、HBW10/250、HBW10/500、HBW10/1000
Test force 62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N)、1000kgf(8907N)、1500kgf(14710N)、3000kgf(29420N)
Max. Height of sample 280mm
Min. Measurement unit 0.01mm
Dwell time 5~60s
Hardness testing range 8~650HBW
Distance from indenter center to the wall 150mm
Hardness reading Comparison with hardness form
Voltage AC220+5%, 50~60Hz
Dimension 532*235*930mm
Weight 123kg

Our Advantage

  • High Quality

    Our production capacity can meet the needs of different customers with different purchase quantities.

  • Preferential price

    As a professional China Custom HB-3000C Electronic Brinell hardness tester Manufacturers, We have our own equipment, one-stop production, factory direct sales, high quality and low price.

  • Custom service

    We have a strong and production team, which can develop and produce custom HB-3000C Electronic Brinell hardness tester according to the product description or sample provided by customers.

  • Rich products

    It can meet the development and production of many different industries.
