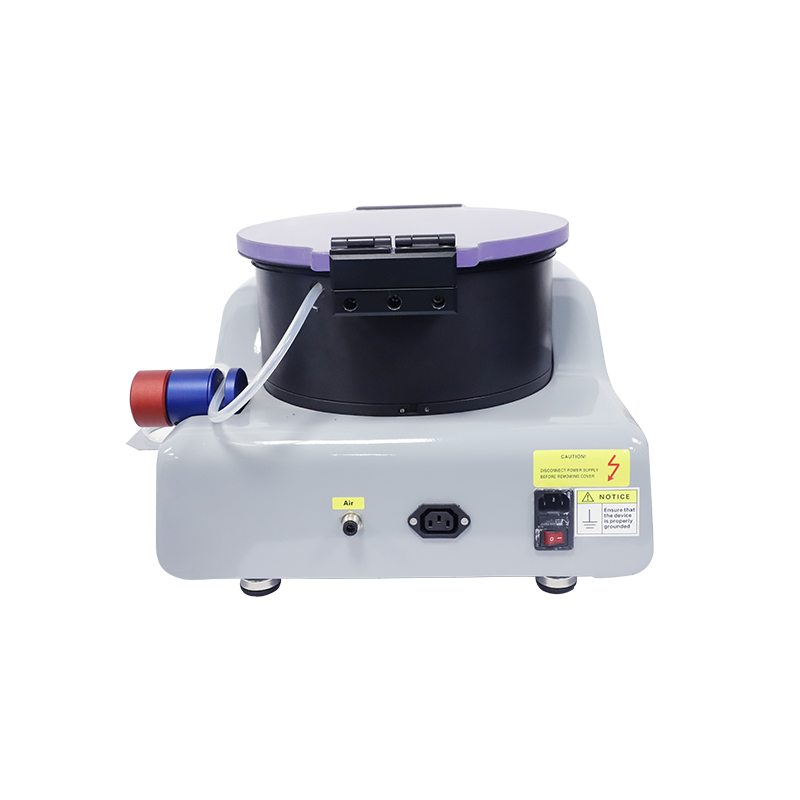

ThetaVAC-2 Vacuum Cold Mounting Machine

Product Introduction：

ThetaVAC-2 is a program-controlled vacuum cold mounting machine with light and compact design. It can be quickly and effectively vacuumed by external compressed air and also can connect to a vacuum pump. The excellent pore impregnation properties makes the resin penetrates into tiny pores and cracks quickly and efficiently, thus ensuring edge-retention and full filling of the sample. Very suit for the preparation of porous materials such as specimens for failure analysis of cracks, porous castings and composites, electronic components, rock minerals, ceramics, etc.

Product Features

1. Program control, vacuum, cycle times and time can be set;

2. Large chamber, can hold 12pcs specimen(in dia.40mm) simultane ously;

3. Electric rotary table, convenient to operation;

4. External high pressure air, easy &safe to operate; (optional vacuum pump )

5. Teflon coating inside makes easy to clean.

Technical parameter

		ThetaVAC-2
Electrical	Power Supply	100-240V, 50Hz, 35W(Vacuum pump not included)
	Control Panel	5” touch screen
	Timing Cycle	Range 0-10min, automatic vacuumize/deflation, cycle repeated
	Maximum number of cycles	100
	Program	20 groups
Vacuum	Vacuum Level	0 ~ -80kPa, vacuum pump 0 ~ -90kpa
	Maximum Vacuum Flow	75L/min
	Air Consumption	28-42L/min
	Noise	55-60dBA
Chamber	Diameter	Inner diameter Φ252, Place 12 Φ40 samples Simultaneously
	Height	For molds with a diameter of less than 100mm, the Max. of height is 100mm; For molds with a diameter of more than 100mm, the Max. of height is 80mm.
	Tray Rotation	Electric button, direction: clockwise/counterclockwise
Operating Environment	Temperature	0-60˚C
Operating Environment	Humidity	0-95%RH
Supply Air	Pressure	OD=Φ6mm pipe, Pressure requirment 0.6~0.7MPa
Vacuum Pump (Optional)	Voltage	Same with the power input
Vacuum Pump (Optional)	Power	Max:1000W
	Cable Connector	National standard three-core type male plug
Dimension	*WDH*	497×461×293mm (Close), 497×461×655mm(Open)
Weight		18kg

Order No	Name	Specifications	Qty
80.90.100	ThetaVAC-2 Vacuum Cold Mounting Machine	86-230V，50-60Hz	1
	Enlarged base plate		1
	Seal ring		1
	Disposable paper cup		10 PCS/Pkg
	The stirring rod		10 PCS/Pkg
	Disposable pouring pipe		10 PCS/Pkg
	Epoxy Resin
	Anti sticking paper		10 PCS/Pkg
	Vacuum pump		1
	Power cord		1
	Instruction manual		1
