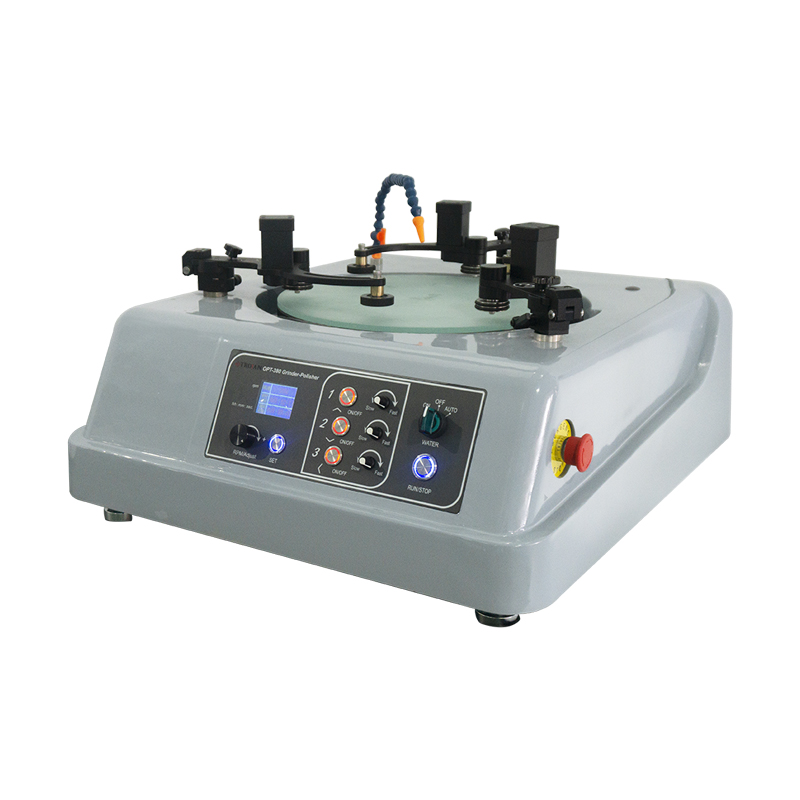

OPT-380 Automatic Precision Grinder & Polisher

OPT-380 Automatic Precision Grinder & Polisher

Product Description

OPT-380 is an automatic precision grinding and polishing machine, which has strong comprehensive performance in the industry, mainly used for grinding and polishing of metal, ceramics, glass, PCB board, optical materials (such as zinc sulfide, silicon and other material), refractory materials, composite materials and other materials. It is one of the ideal grinding and polishing equipment for scientific research institutes and production enterprises. The Φ381mm disc can be used for preparing the specimen with a diameter of ≤ Φ142mm or a rectangular plane with a diagonal length of ≤ 142mm.

Product Details

Features

1. The grinding disc can be convenient to replace as the swing arm can be quickly disassembled and assembled;

2. The motor adopts the stepless speed control method, and the speed in real time can display on the digital screen;

3. Even longer service life as the motor adopts angular contact bearing instead of ball bearing;

4. Can accurately control the working time (between 0-999H) with timing function;

5. Can running long-term in low-speed with a cooling system;

6. Convenient to operate on the 2.4" simple LCD screen.

Technical Parameters





OPT-380

Working Wheel

Speed

10-200rpm

Diameter

Φ381mm

Station

Three station

Grinding Capacity

Specimen Size

Dia < Φ155mm

Planeness

less-than 0.002mm per 20*20mm

Electrica

Voltage/Frequency

220V/50Hz

Rated Power

800W

Standby Power

15W

Timer

0~999H59M59S

Water Supply Max. pressure

0.6MPa

Dia. on inlet pipe

Φ8mm

Dia. on outlet pipe

Φ32mm

Operating Environment

Temperature

-20˚C - 60˚C

Humidity

0-95%RH

Dimension

W*D*H

653*771*338mm

Weight

150kg
