GP-2A Double Disc Grinder & Polisher

GP-2A Double Disc Grinder & Polisher

Product Description

GP-2A is a double disc grinding and polishing machine with multi-func tion and stepless speed-adjustable properties. The range of the speed can be adjust from 50-1000rmp, can be used on the whole sample preparation process from coarse to the fine of grinding& polishing process.

E-mail: [email protected]
Download Contact Us Send E-mail
  • GP-2A Double Disc Grinder & Polisher
  • GP-2A Double Disc Grinder & Polisher
  • GP-2A Double Disc Grinder & Polisher
  • GP-2A Double Disc Grinder & Polisher

Product Details

Features

1. Various specifications to meet diverse needs, economical and practical;

2. CW and CCW direction control; Three programmable preset speeds and timer;

3. Automatic temperature-sensing cooling fan, can reduce failure rate and improve working life;

4. Emergency stop switch;

5. Retractable water spout.


Technical Parameters





GP-2A

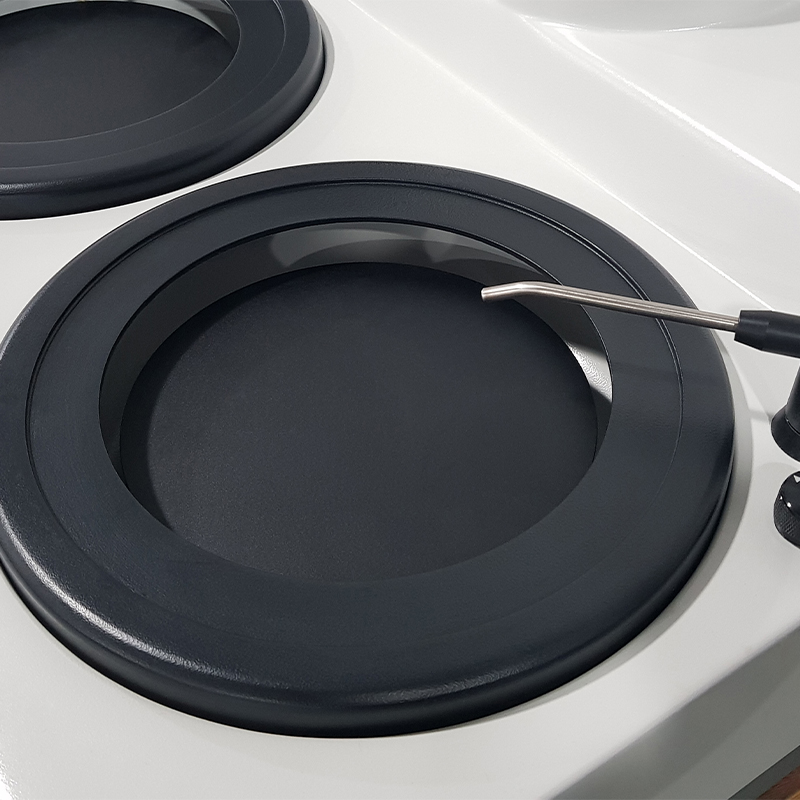

Working Wheel

Wheel

Double wheel with one panel

Speed

50-1000rpm

Diameter

8"-10"(200/250mm)

Direction

Clockwise/Counter clockwise

Electronic

Voltage/Frequency

110V/60Hz.220V/50Hz

Rated Power

750W

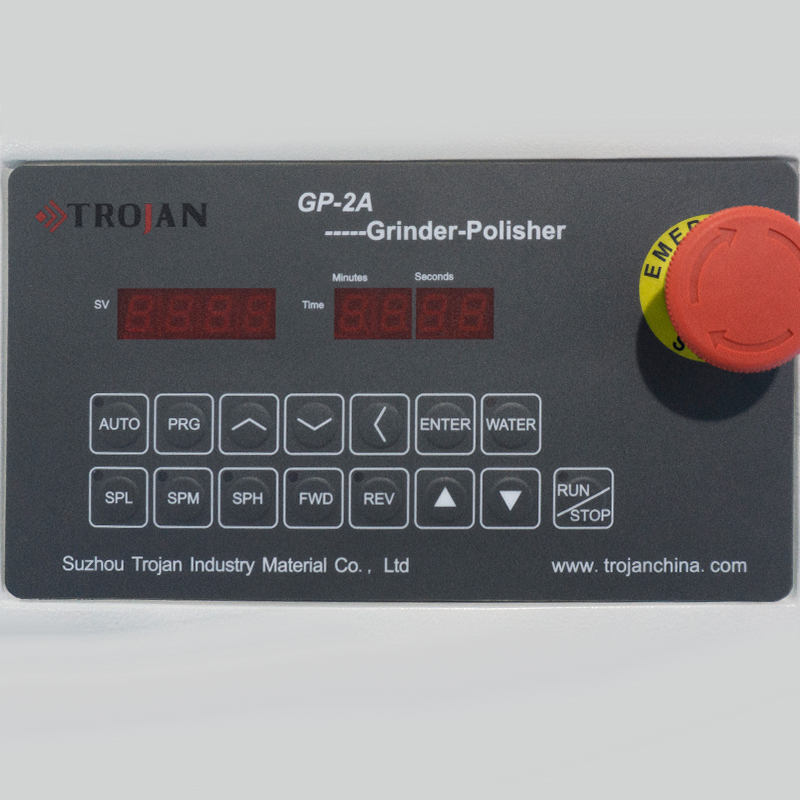

Operation Panel

Keyboards Press Panel

Standard
Water Supply

Max. pressure

<0.3MPa

Pipe dia. on inlet

OD=Φ8mm

Pipe dia. on outlet

OD=Φ25mm

Recirculating water tank (optional)

45L,Minimum filter accuracy:0.01um

Noisy

Measured at 1 meter

<40dBA

Operating Environment

Tempersture

-20˚C - 60˚C (-4°F -140°F)

Humidity

0-95%RH

Dimensions

W*D*H

705*703*338mm

Weight

57kg

Our Advantage

  • High Quality

    Our production capacity can meet the needs of different customers with different purchase quantities.

  • Preferential price

    As a professional China Custom GP-2A Double Disc Grinder & Polisher Manufacturers, We have our own equipment, one-stop production, factory direct sales, high quality and low price.

  • Custom service

    We have a strong and production team, which can develop and produce custom GP-2A Double Disc Grinder & Polisher according to the product description or sample provided by customers.

  • Rich products

    It can meet the development and production of many different industries.
